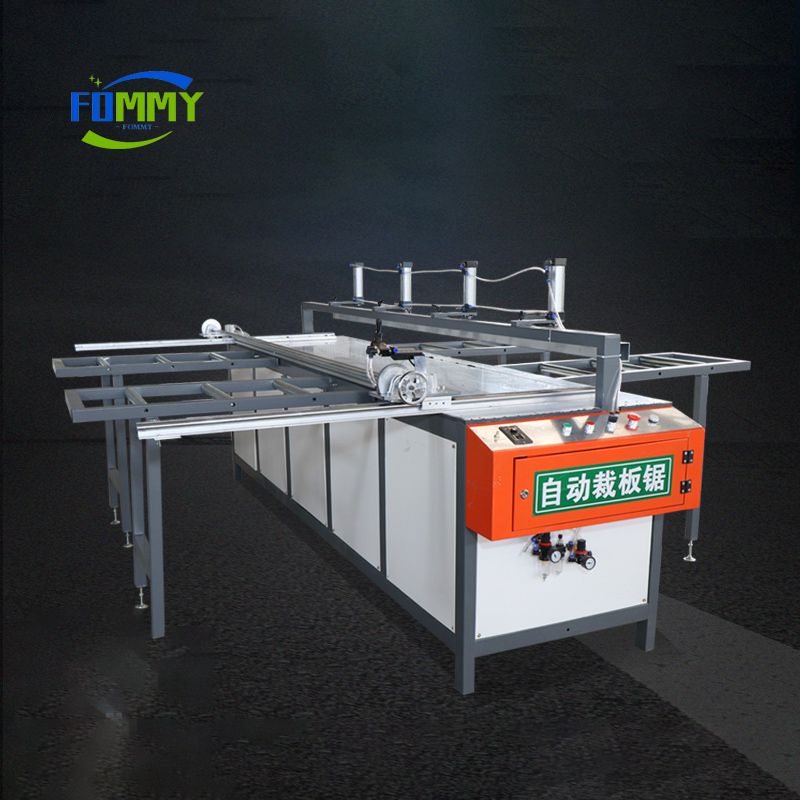

Automatic cutting saw:

Positioning son mother saw automatic cutting saw, the machine adopts computer touch screen control, two sets of pure servo motors, driven by positioning cushion, the accuracy can reach accurate to o.1mm. Input the size and number of segments need to be cut, you can realize automatic positioning, automatic cutting.

Inquire Now Next Product

Product features:

Automatic cutting saw, the machine adopts computer touch screen control, two sets of pure servo motors, driven by positioning cushion, the accuracy can reach accurate to o.1mm. Input the size and number of segments need to be cut, you can realize automatic positioning, automatic cutting. This machine is mainly suitable for cutting down various wooden boards, saving time and labor, smooth cut without burr and not chip.ping. It can also cut aluminum alloy, wood type, PVC and other materials plates.

Scope of application

Automatic cutting saw

The plate furniture production supporting equipment ,automatic saw mainly suitable for cutting down various wooden boards, saving time and labor, smooth cut without burr and not chip.ping. It can also cut aluminum alloy, wood type, PVC and other materials plates.

Product details

Automatic cutting saw

Product parameter

Equipment System	CNC Operating System	Positioning Method	Automatic Positioning
Spindle Power	4kW + 1.1kW + 750W*3	Operating Pressure	0.6 - 0.8MPa
Feeding Motor	Pure Servo Motor	Positioning Motor Power	750W*2 parts
2.5m Overall Size	410032301060mm	3m Overall Size	460032301060mm
Machine Weight	700/800kg	Control Mode	Computerized Touch Screen
Longest Cut	2500mm or 3000mm	Widest Positioning	2500mm or 2800mm

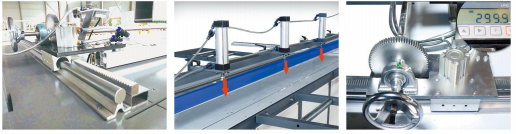

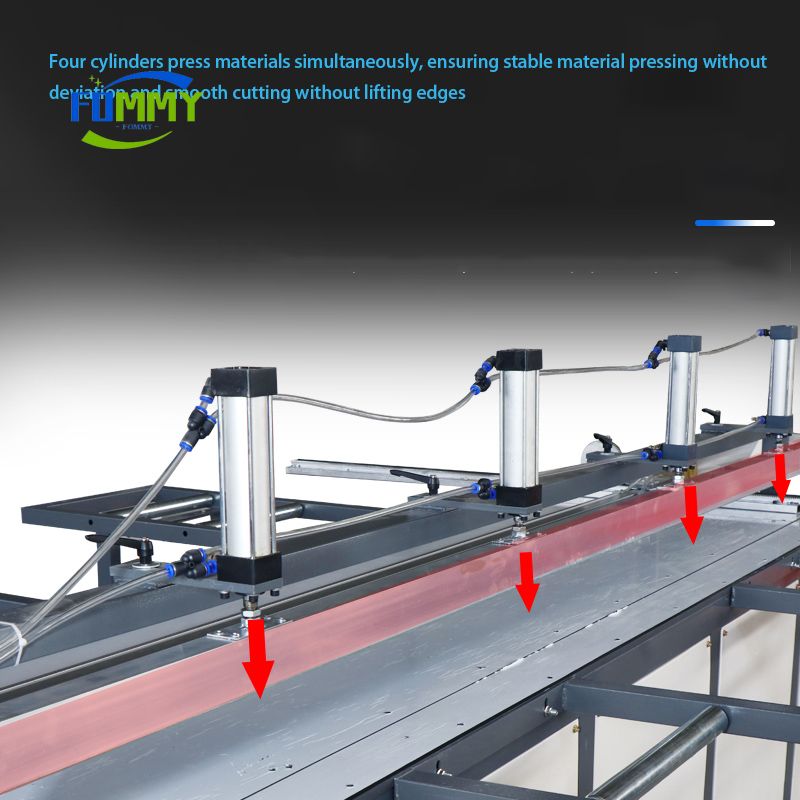

Positioning Guide	Rack and Pinion Guide + Rail and Cylinder Guide	Positioning Error	0.03mm
