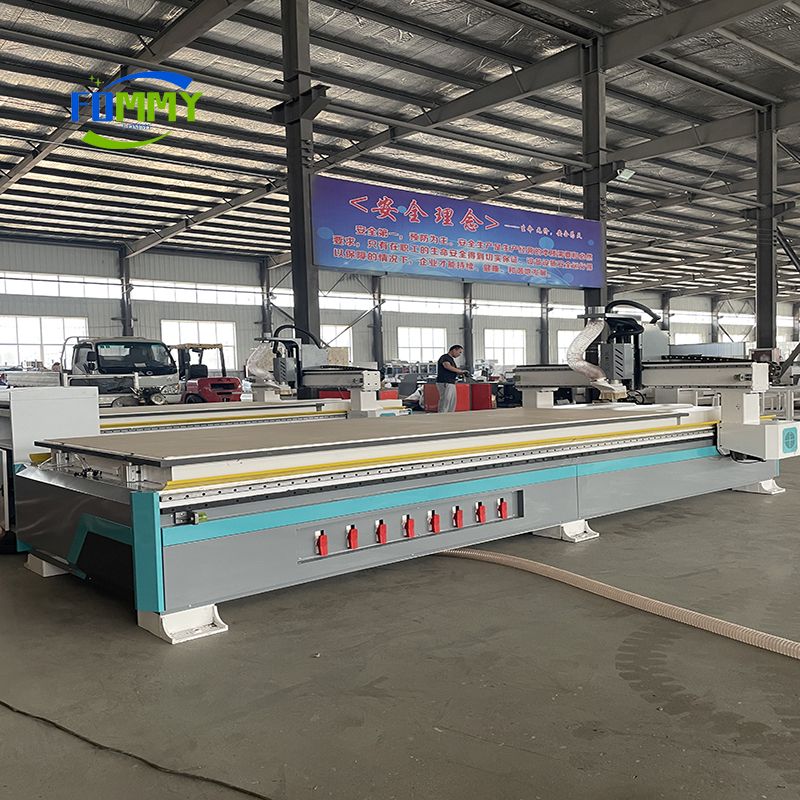

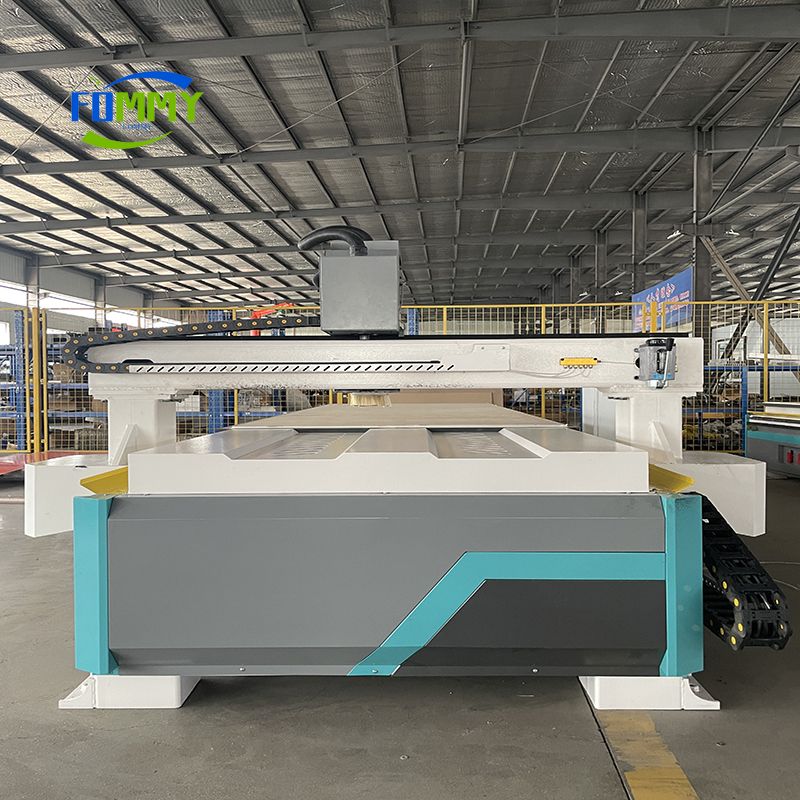

CNC cutting machine:

Multi-functional heavy duty CNC cutting machine, heavy duty steel structure body, eight millimeter gantry steel, heat treatment to eliminate stress, to ensure long term smooth operation without deformation.XYZ three axes with pure servo drivea75 servo drive motor z with brake,XY with high precision grinding rack and pinion drive ZTBI high precision screw, the machine is suitable for a variety of industries,all-aluminum home, honeycomb panel ceiling, panel furniture, cabinets and closets aluminum alloy honeycomb panels, wooden panels, welded whole panels, corrugated cardboard, PVC boards, and other kinds of panels, plane undercutting, milling, chamfering , perforating, carving and other auxiliary proces

Inquire Now None

Product parameters

Airspeed	50--100m/min	Machining speed	10--50M/MIN
Machine size	depends on the specific model	Machining size	2500MM--6000MM
Spindle speed	18000rpm/12000rpm	Spindle motor	3.5KW--double - sided cutting blade
Tool holders/saws	6, 8, 12.7mm, diameter 150mm	Machine precision	0.01MM
Table	vacuum absorption + 8 zones control	Traveling motor	pure servo motor*3
XYZ travel	depends on the specific model	Operation pressure	0.6--0.8MPA

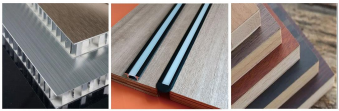

Scope of application

CNC cutting machine

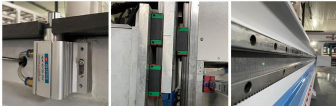

Product details

CNC cutting machine
