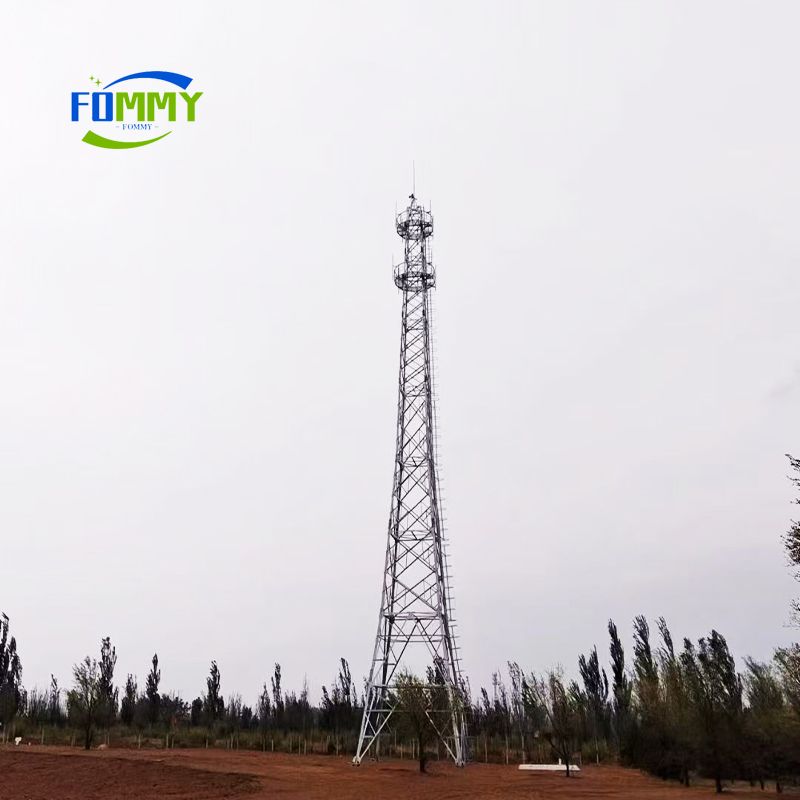

Angle Steel Lattice Communication Tower:

Constructed from high-strength angle steel, our lattice towers serve as the durable framework of telecommunications networks. These engineered structures integrate robust structural performance with functional design, providing a reliable backbone for uninterrupted signal transmission across diverse terrains.

Inquire Now Next Product

Product Description

Lattice Communication Towers: The Heavy-Duty Backbone for Network Expansion

----Engineered with robust angle steel for unparalleled strength, capacity, and stability in the most demanding environments.

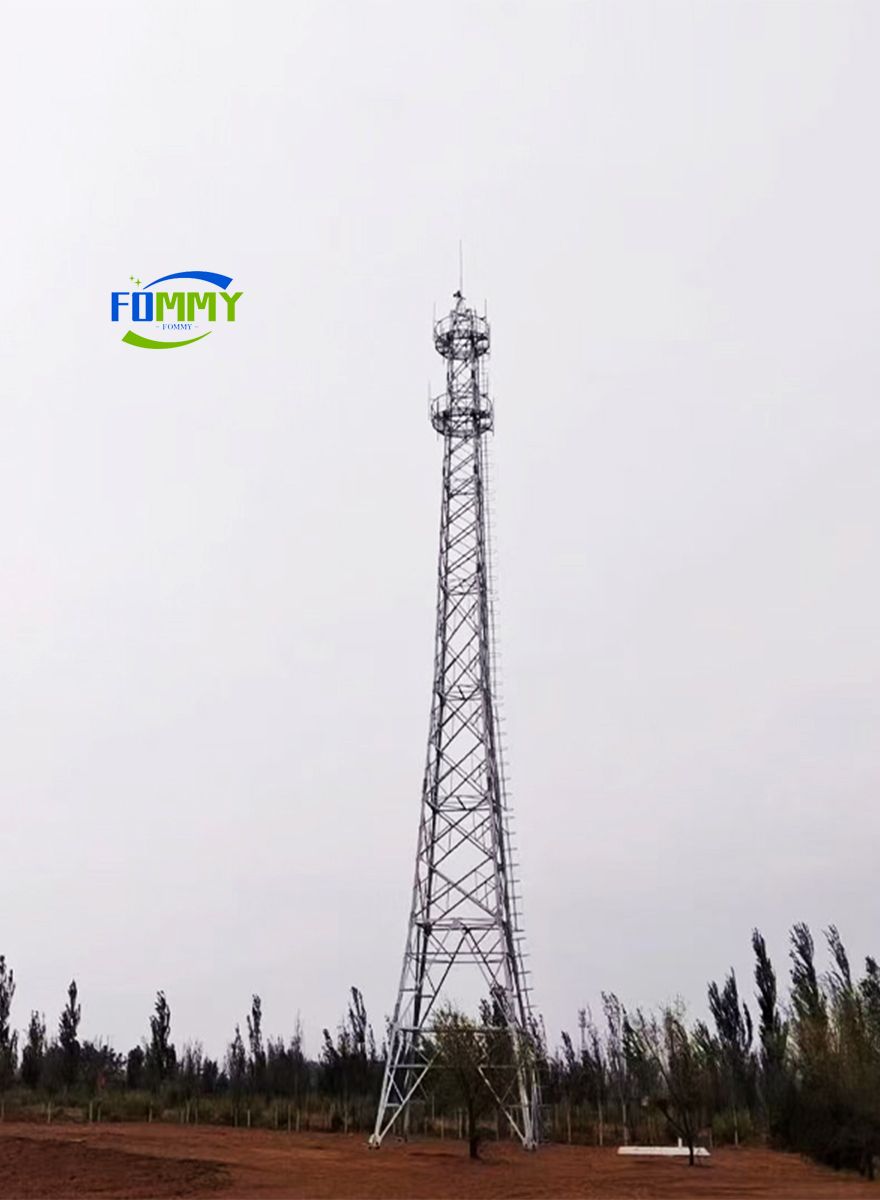

Angle Steel Lattice Communication Tower

Key Advantages

Why Choose Angle Steel Lattice Towers?

High Load Capacity
It can simultaneously support a large number of antennas, Rrus and microwave antennas from multiple operators, maximizing the value of the site.
Exceptional Strength & Stability
The triangular lattice geometry provides inherent rigidity, offering superior resistance to high winds, ice loads, and seismic forces.
Cost-Effective for Heavy-Duty Needs
Delivers the highest capacity and strength at a lower cost per kilogram of load compared to other tower types, offering exceptional long-term value.
Long-lasting and durable
Fabricated from high-strength angle steel and protected by hot-dip galvanization, ensuring decades of reliable service with minimal maintenance.

Technical Specifications

Parameter	Specification
Structure Type	Triangular / Square Lattice (Angle Steel)
Standard Height Range	30m to 80m+ (Fully Customizable)
Design Wind Speed	Up to 250 km/h (Customizable)
Ice Load	Up to 50 mm (Customizable)
Material	High-Strength Angle Steel (Q235B, Q345B)
Corrosion Protection	Hot-Dip Galvanized (≥85μm)
Load Capacity	Excellent for multi-operator, heavy 5G antennas
Connection Type	Bolted (for easy assembly and potential relocation)
Design Standards	ISO 9001, EIA/TIA-222-G/H, etc.

Design features

Bolt connection:

All components have been pre-drilled on site and bolted together, ensuring a firm connection and easier assembly. They can also be disassembled or modified in the future.

Hot-dip galvanized steel:

The entire structure, including each Angle steel and bolt, is hot-dip galvanized to provide complete and long-lasting anti-corrosion protection.

Optimized support:

A meticulously designed support system ensures the overall structural stability while minimizing wind loads to the greatest extent.

Flexible platform configuration:

Multiple platforms can be added at different heights to adapt to various antenna configurations.

Application scenarios

Multi-Operator Shared Sites:

The ideal solution for hosting equipment from multiple telecom carriers on a single, ultra-stable structure.

Rural & Regional Coverage:

Provides wide-area coverage in open plains and mountainous terrain where stability is paramount.

Broadcast & Mission-Critical Networks:

Serves as a reliable backbone for FM/TV broadcasting and government communication networks.

Windy & High-Ice Regions:

Specifically engineered for locations prone to extreme weather conditions.
