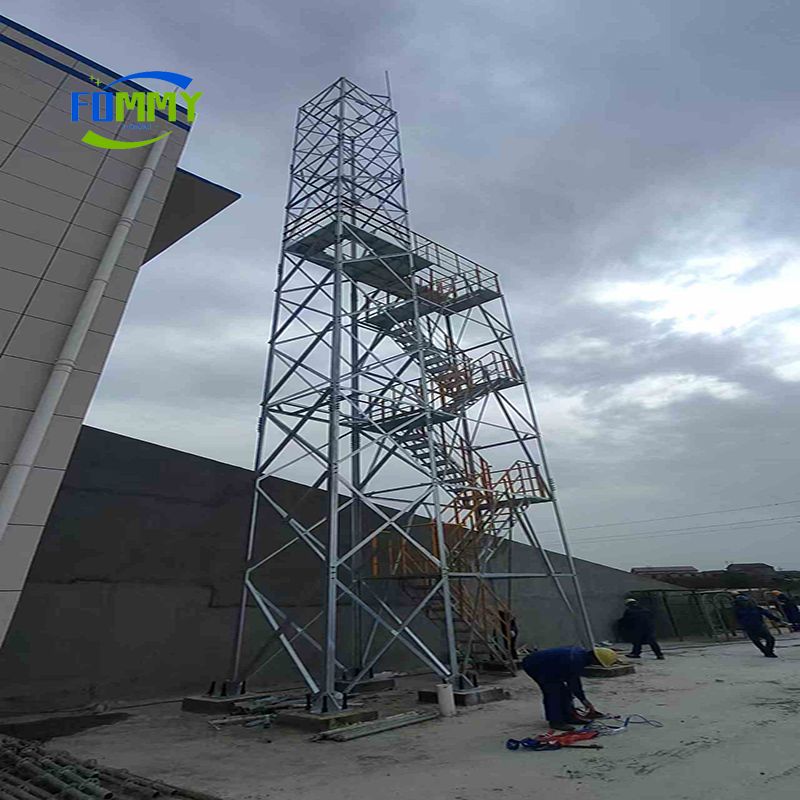

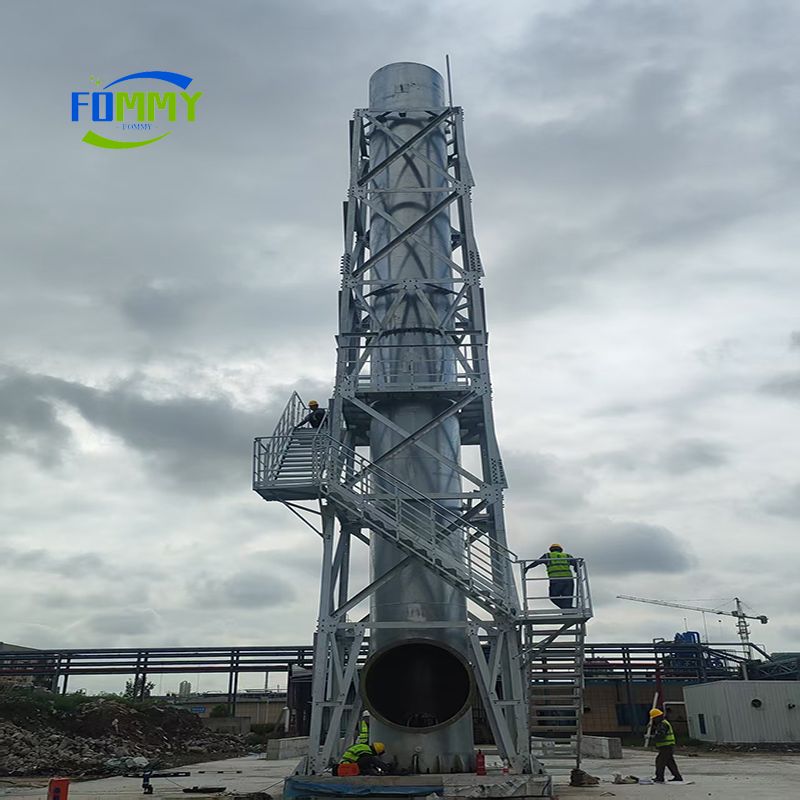

Chimney Steel Structure and Smokestack Structrual Tower:

The chimney tower is a chimney support tower, an exhaust gas emission tower, and a chimney auxiliary support tower. It mainly supports the supported pipe body with a steel structure support frame. The structure is self-standing and wire-drawn, and is mostly used in chemical enterprises, petroleum departments, and Gas emissions, etc., the height range is 10-200 meters.

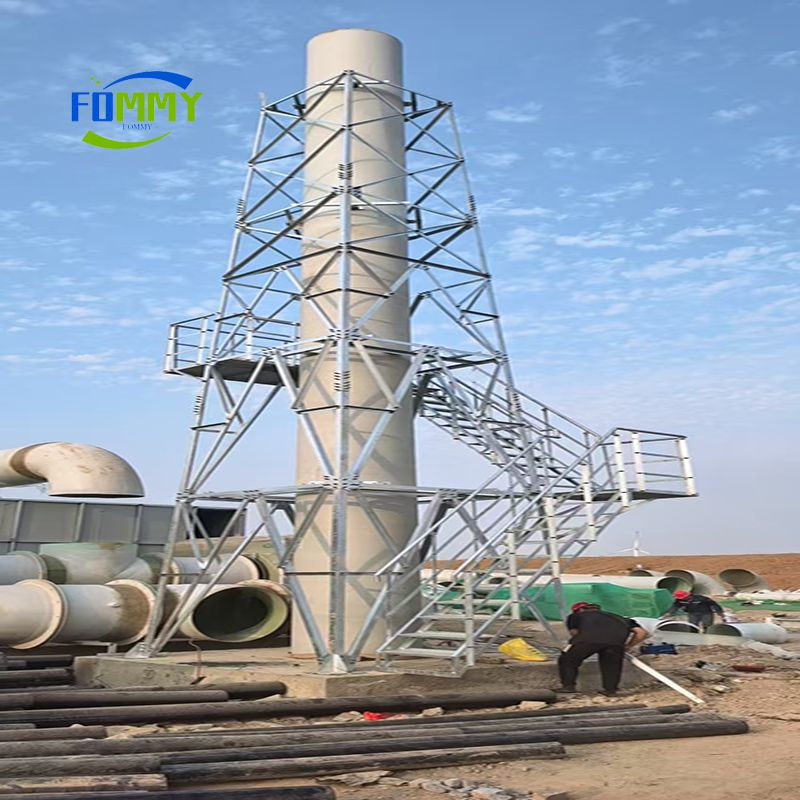

The structure of the chimney tower can be divided into a four-column angle steel structure and a three-column steel pipe structure, and the hoop is fixed in the middle by using a hoop.

Our company can design, manufacture and install chimney tower products according to the special requirements of users. It has unique design in the use of special chimney towers.

The torch tower is mainly used to burn oil, petrochemical, refining, refining, natural gas, chemical fertilizer, chemical and other enterprises in the production process, can not be or can not be recycled, and often is toxic and harmful, flammable and explosive, etc. Hazardous flammable gases that convert such gases into non-hazardous gases and vent to the atmosphere. As a safety protection and environmental protection device, the torch cannot be underestimated.

1. high-altitude torch: the height is generally tens of meters or even more than 100 meters, the highest high-altitude torch in the country that has already been 180 meters high is put into production operation. According to the established form: elevated torch (tower type torch), self-supporting torch, pull rope type torch.

2.ground torch: mainly refers to the burner is set on the ground, surrounded by closed closed exhaust gas combustion device.

Inquire Now None

Product Description

Chimney Steel Structure and Smokestack Structrual Tower

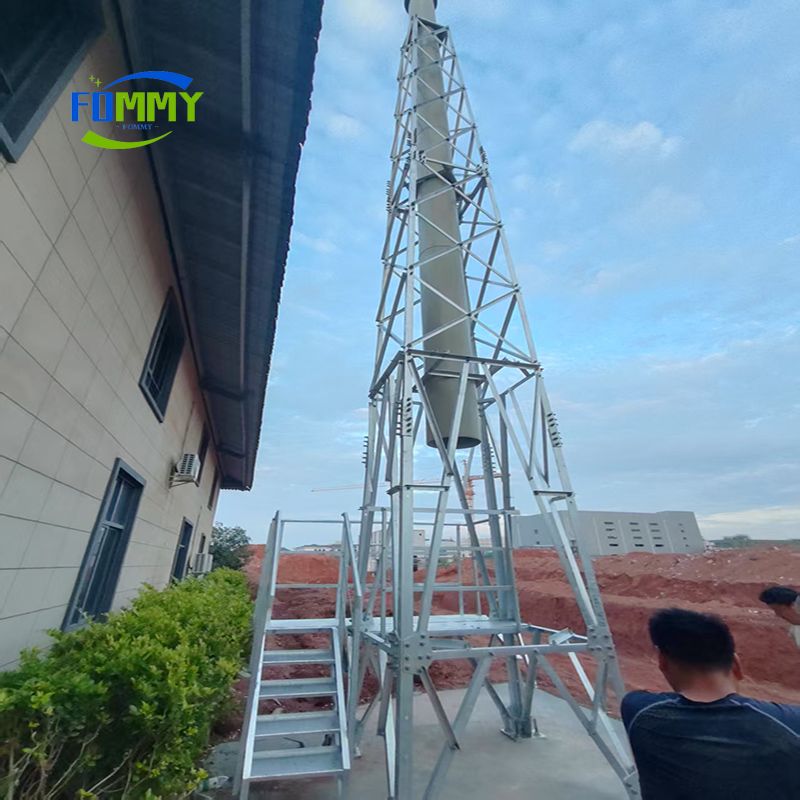

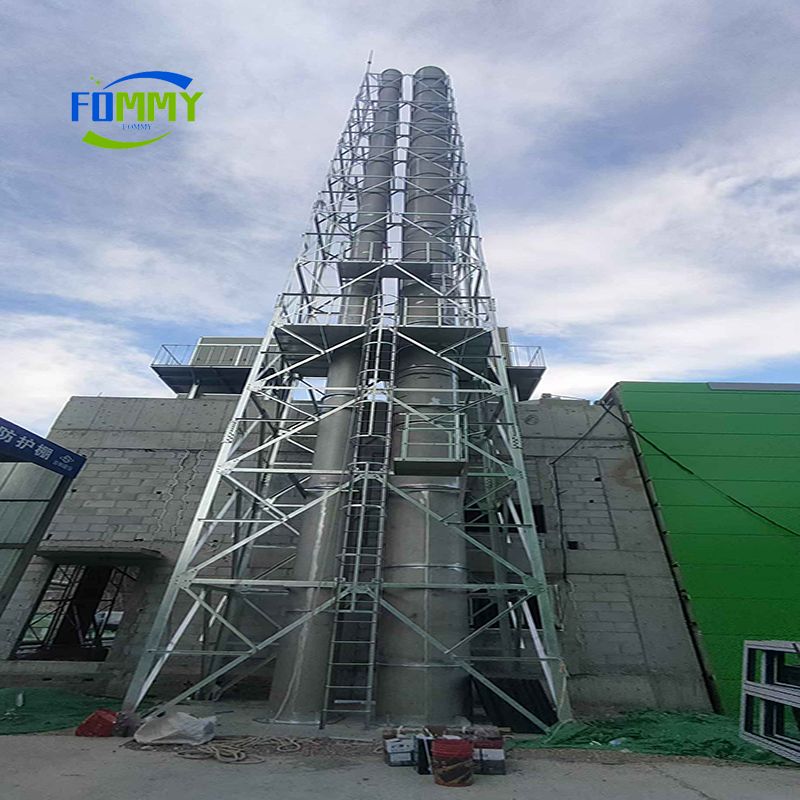

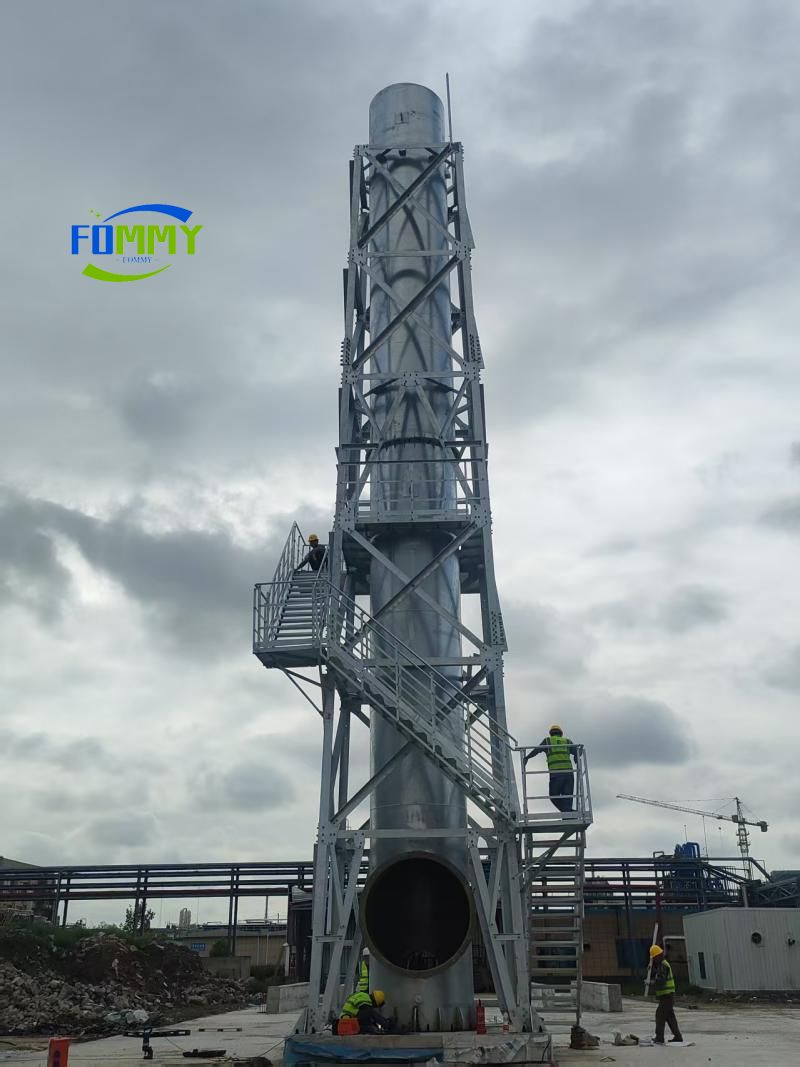

The chimney tower is divided into four-column angle steel structure and three-column steel tube structure. The chimney is fixed in the center with hold hoop. The tube is mainly supported by steel structure support frame, including free standing type and guyed type. It is mainly used in chemical industry, petroleum industry, flammable gases emission, etc. with height range from 10 to 100m. The tower material usually uses angle steel and steel tube.Chimney Tower is manly used to fix and repair the chimney.

Applicable Scene

Industrial boiler chimney/Waste incineration chimney/Factory chimney tower/Thermal Power Plant/Coastal Chemical Plant/Oil Refinery

Specification

Model Number	customized
Type	Chimney Tower
Brand Name	FOMMY
Place of Origin	China
Surface Treatment	Hot dip galvanizing
Lifting method	Manual
Material	Q235B/Q355/Q420B/Bsteel
Standard	GB / ANSI / TIA-222-G
Color	Customized Color
Height	10M-60M
Wind Speed	0-300KM/H
Port	TIANJIN PORT
Lifetime	30 Years

Feature

1. Extreme Weather & Corrosion Resistance

Made of galvanized steel with anti-corrosion coating, it withstands harsh conditions: -40℃ to 500℃ high/low temperatures,

acid-alkali erosion, and 120km/h strong winds. Reduces equipment damage risks, ensuring stable operation in refineries and waste

incineration plants.

2. Rapid Modular Installation Minimizes Production Disruption

Prefabricated components allow on-site assembly in 3-5 days—no heavy construction equipment required. Cuts installation time by

60% compared to traditional towers, avoiding long-term production halts for steel mills and oil refineries.

3. High Load-Bearing for Multi-Device Operation

Supports up to 500kg of equipment, including 5G antennas, surveillance cameras, and environmental sensors. Enables simultaneous

operation of smoke discharge and communication systems, ensuring stable signal coverage for petrochemical parks.

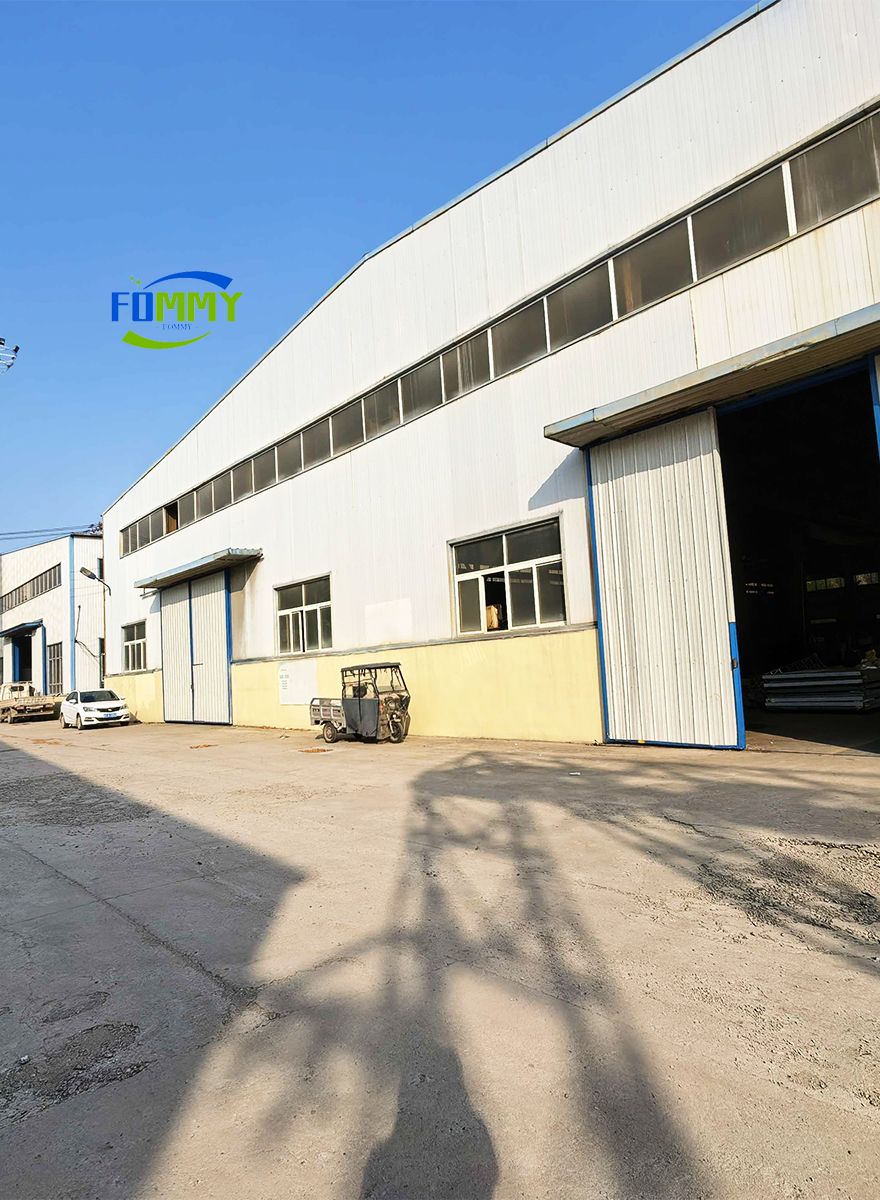

Our Factory

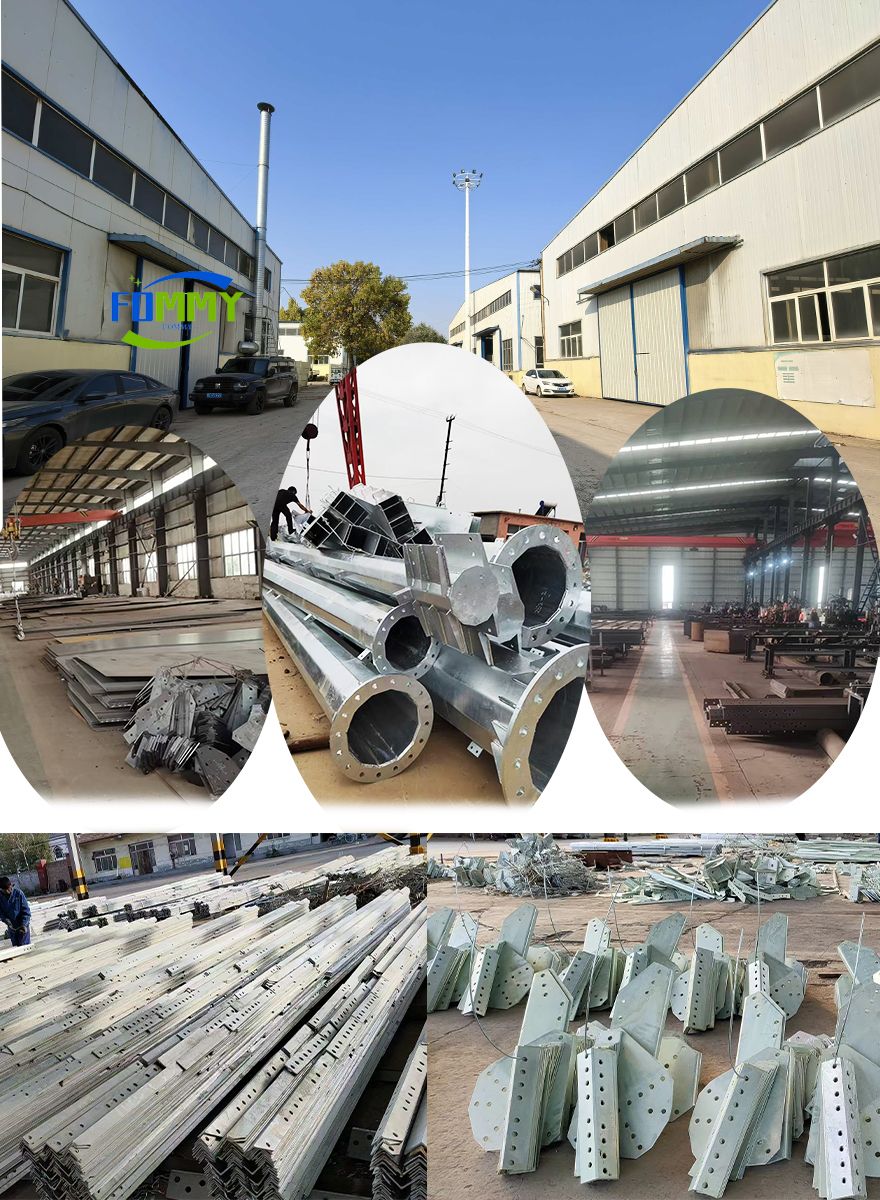

Production workshop

Chimney Steel Structure and Smokestack Structrual Tower

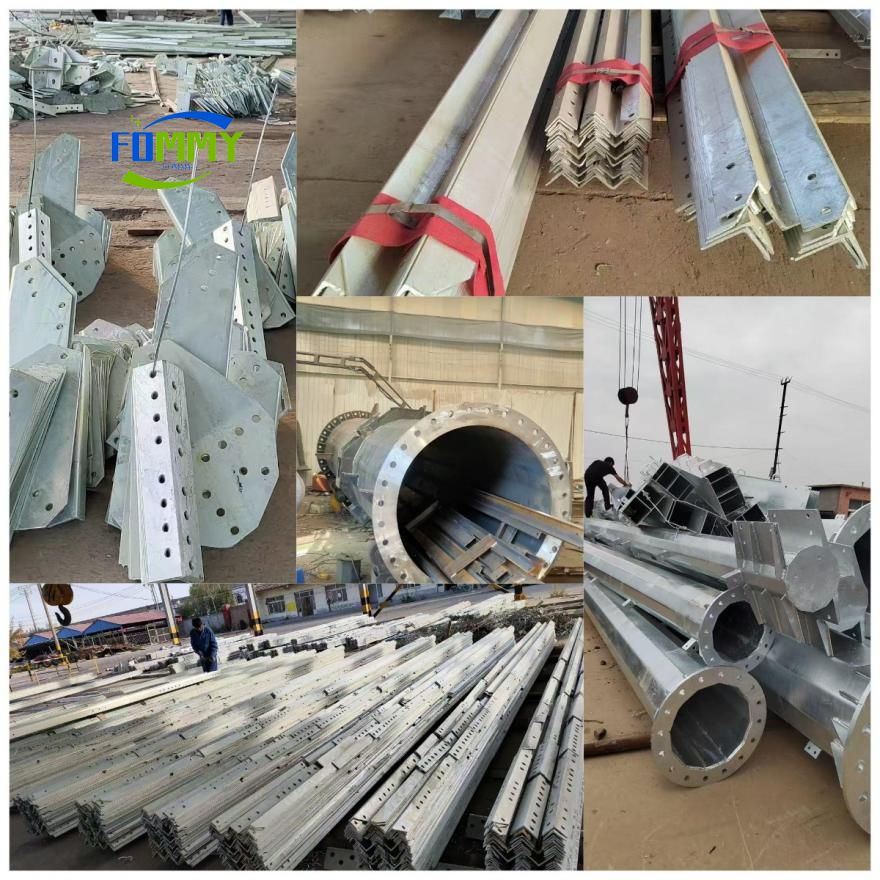

Galvanizing

Why Choose Us

Our factory specializes in the production of various types of towers, communication towers, lightning protection towers, decorative towers, industrial towers, watch towers and other towers. Accept processing customization, can be customized according to drawings, can be designed according to customer requirements.

customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization
