Customized Industrial Chimney Tower Steel Structure:

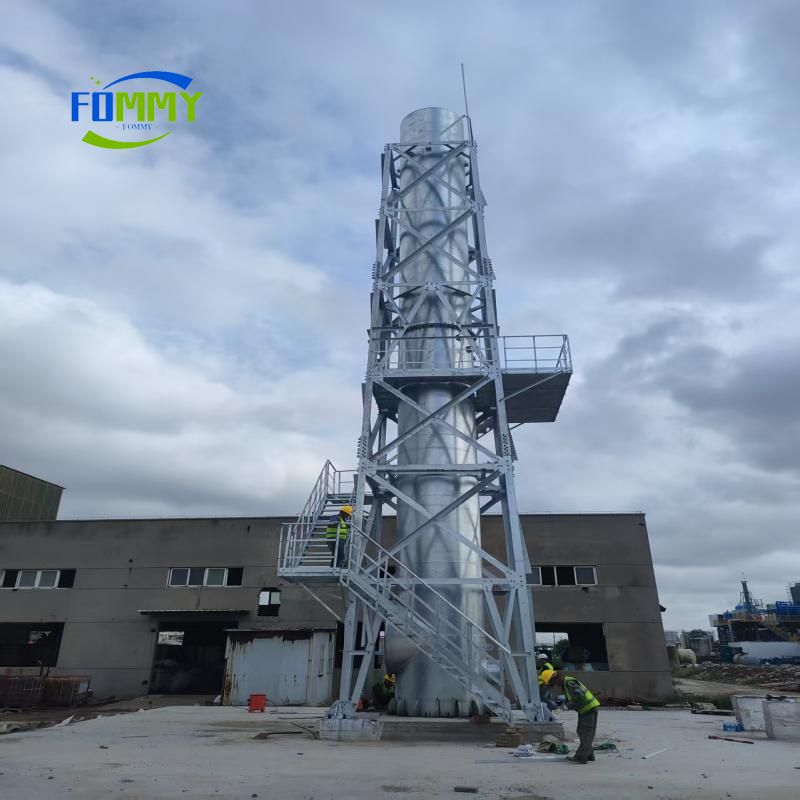

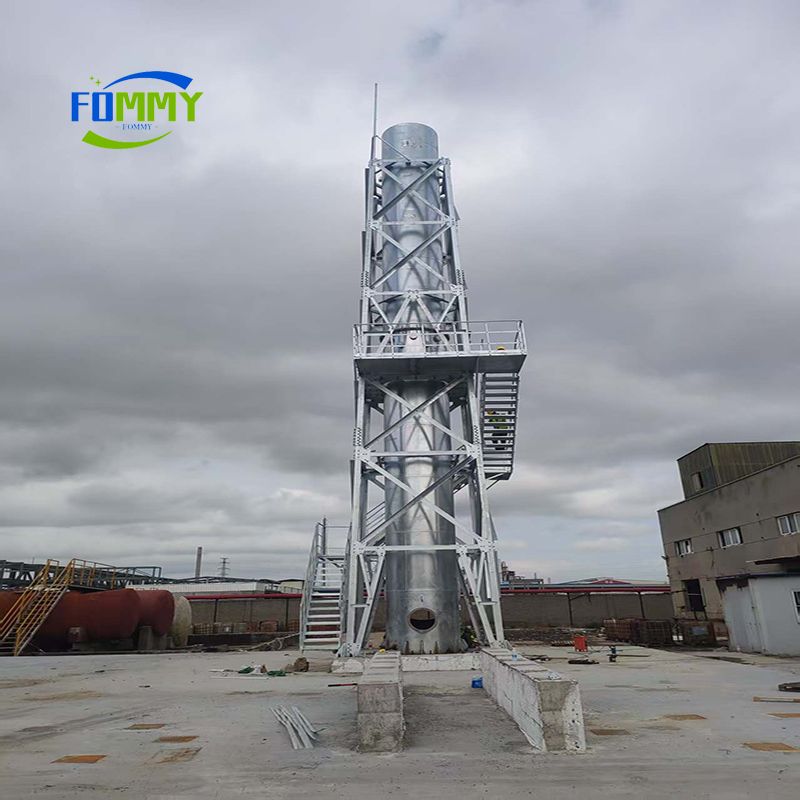

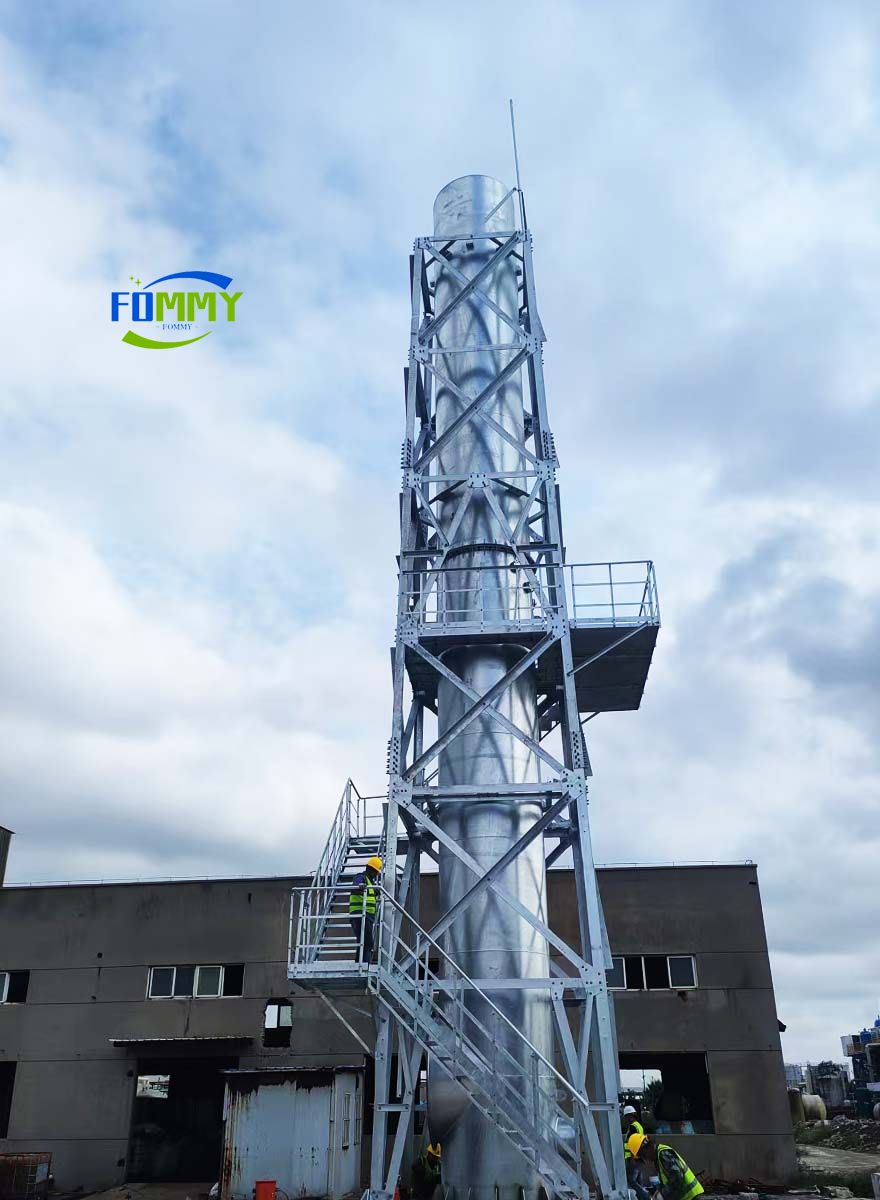

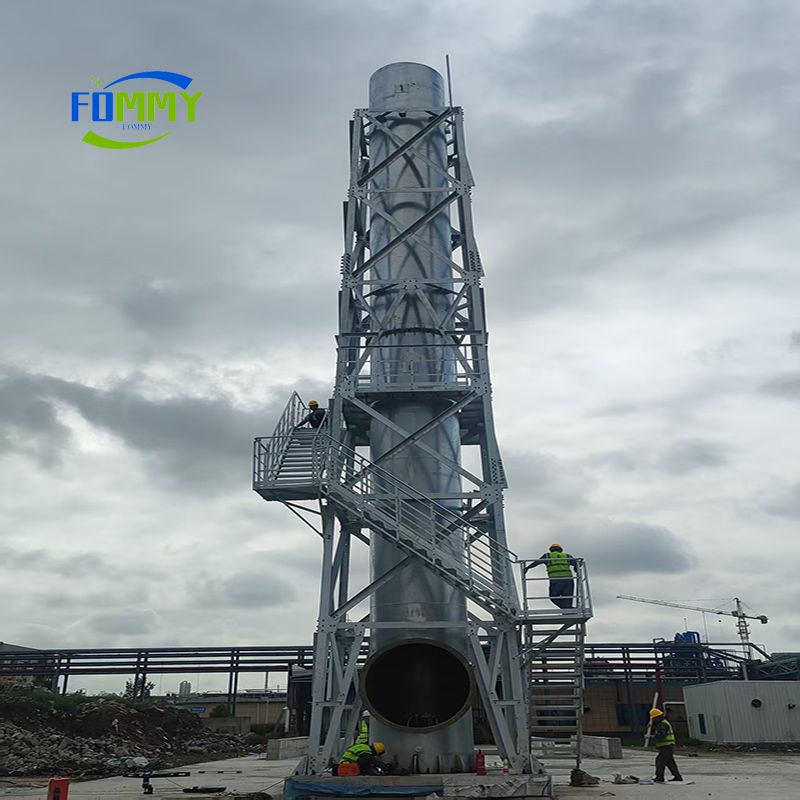

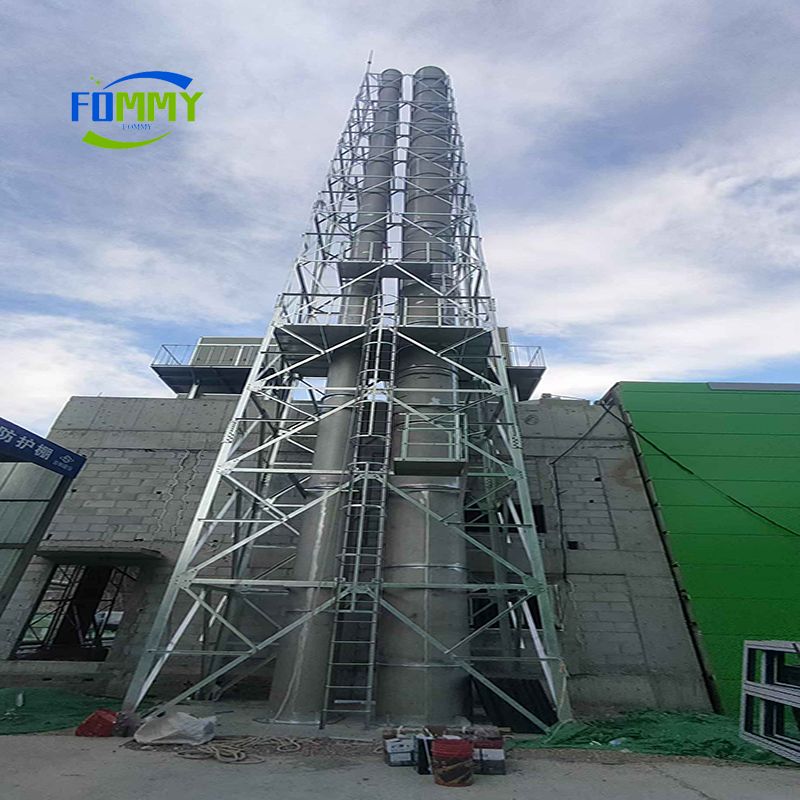

Chimney towers encompass chimney support towers, exhaust emission towers, and auxiliary chimney support towers. Primarily employing steel structural support frameworks to bear the weight of the supported tubular structure, they feature a self-supporting guyed structure. These towers are predominantly utilised within chemical enterprises, petroleum sectors, and gas emission applications, with heights ranging from 10 to 200 metres.

Inquire Now Next Product

Product Description

Customized Industrial Chimney Tower Steel Structure

Feature	FRP Chimney	Galvanized Steel Chimney
‌Corrosion Resistance‌	Excellent (no additional coatings needed)	Good (requires zinc coating)
‌Weight‌	Lightweight (easy installation)	Heavy (requires strong foundations)
‌Lifetime	30+ years	20+ years
‌Cost‌	Higher initial cost, lower maintenance	Lower initial cost, higher maintenance
‌Best For‌	Chemical plants, high-humidity areas	Power plants, high-wind regions

‌1. FRP (Fiberglass Reinforced Plastic) Chimney‌

‌Characteristics‌:

‌Corrosion Resistance‌: Resistant to acid, alkali, and chemical fumes, ideal for harsh environments (e.g., chemical plants, wastewater treatment facilities).

‌Lightweight & Durable‌: 70% lighter than steel, with a lifespan of 30+ years.

‌Low Maintenance‌: No need for anti-corrosion coatings or frequent repairs.

‌Customizable‌: Available in diameters from 200mm to 5,000mm and heights up to 150m.

‌Applications‌:

Power plants, petrochemical facilities, and industrial waste gas emissions.

Suitable for high-temperature (up to 180°C) and high-humidity environments.

2. Galvanized Steel Chimney‌

‌Characteristics‌:

‌High Strength‌: Load-bearing capacity up to 300kN/m², suitable for large-scale industrial projects.

‌Weather Resistance‌: Zinc coating protects against rust and UV degradation, extending lifespan to 20+ years.

‌Modular Design‌: Easy to assemble, with diameters ranging from 500mm to 8,000mm.

‌Cost-Effective‌: Lower initial investment compared to FRP, with long-term savings on maintenance.

‌Applications‌:

Boiler exhaust systems, thermal power plants, and heavy industrial facilities.

Ideal for high-wind and seismic zones due to structural stability.
