The gantry structure has been manufactured and successfully passed the quality inspection

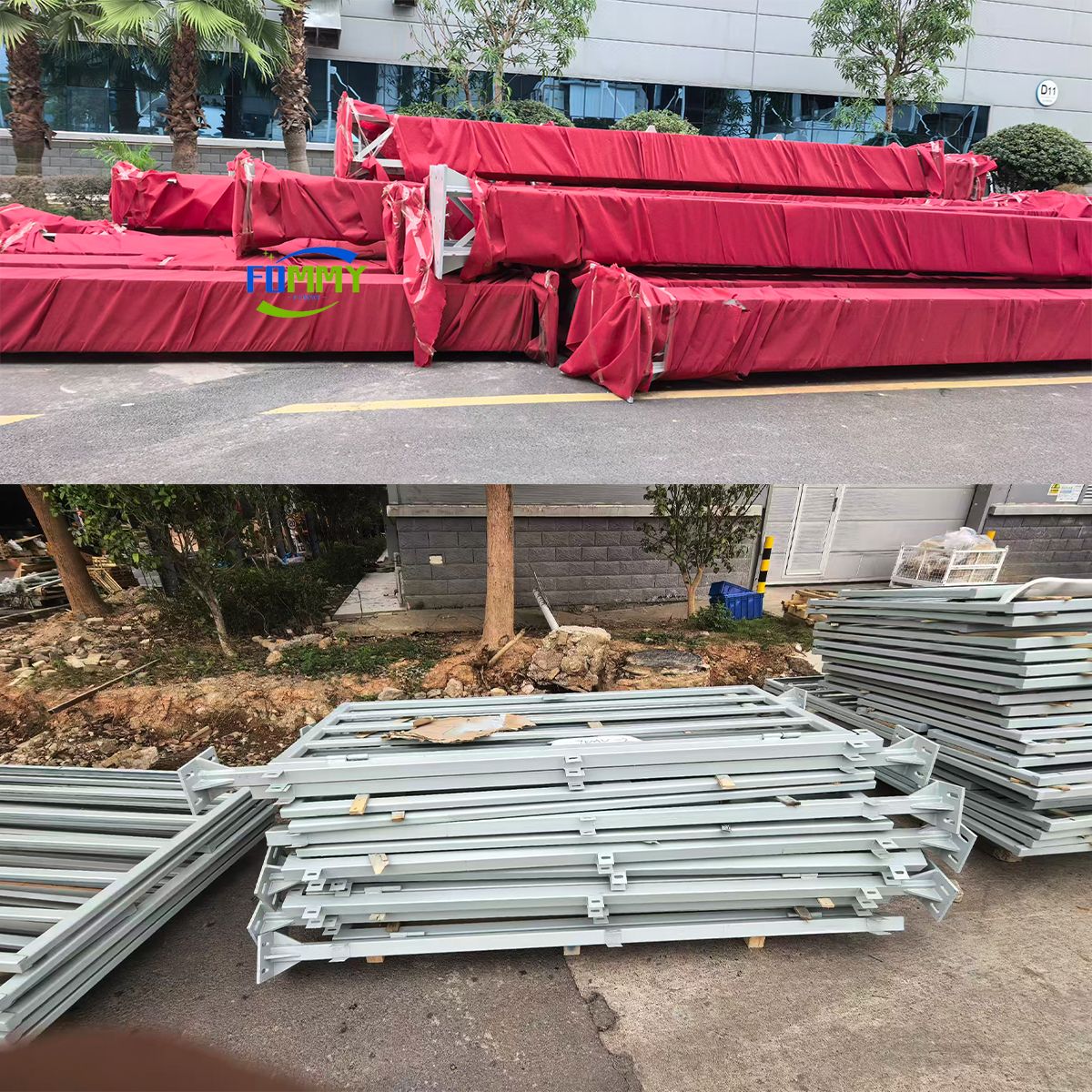

The gantry frame ordered by the factory customer has been produced and passed the inspection, and is ready for shipment.

A gantry frame is a portal steel structure composed of two columns and a top crossbeam. Its core function is to provide a sturdy aerial support that can carry major equipment, tools or form specific passages.

Core structural features

Portal frame: The core shape resembles the Chinese character "门" (door), with a simple structure and clear force distribution.

High load-bearing capacity： Specifically designed to support suspended loads (such as cranes， cameras， signal lights， and display screens).

Spanning capability： The beam structure enables it to span over roads， production lines， or work areas below without interfering with ground activities.

Structural stability： Usually fixed with large foundations or counterweights to ensure overall stability.

Main Materials

Main structure: High-strength angle steel, H-beams, steel pipes or steel plates.

Anti-corrosion treatment: Hot-dip galvanizing is the most common and effective treatment method, ensuring long-term durability in outdoor environments. Other treatment methods such as spraying can also be adopted.

Typical application scenarios

Traffic monitoring and indication:

Used for the installation of traffic lights, electronic police, variable message signs, and surveillance cameras above roads.

Industry and logistics:

Serving as the framework of gantry cranes, it is utilized in factories, warehouses, ports, and construction sites for lifting and moving heavy goods.

Vehicle inspection and height limit:

Used for installing vehicle height limit frames and over-limit detection systems.

Large venues and advertising:

Used for hanging large advertising boards, lighting equipment or concert sound equipment.

The gantry frame is a powerful and widely-applied steel structure solution. Its core value lies in providing stable and reliable support points in the air within a specific space, and it is one of the key infrastructures for achieving automated, intelligent and safe management.
