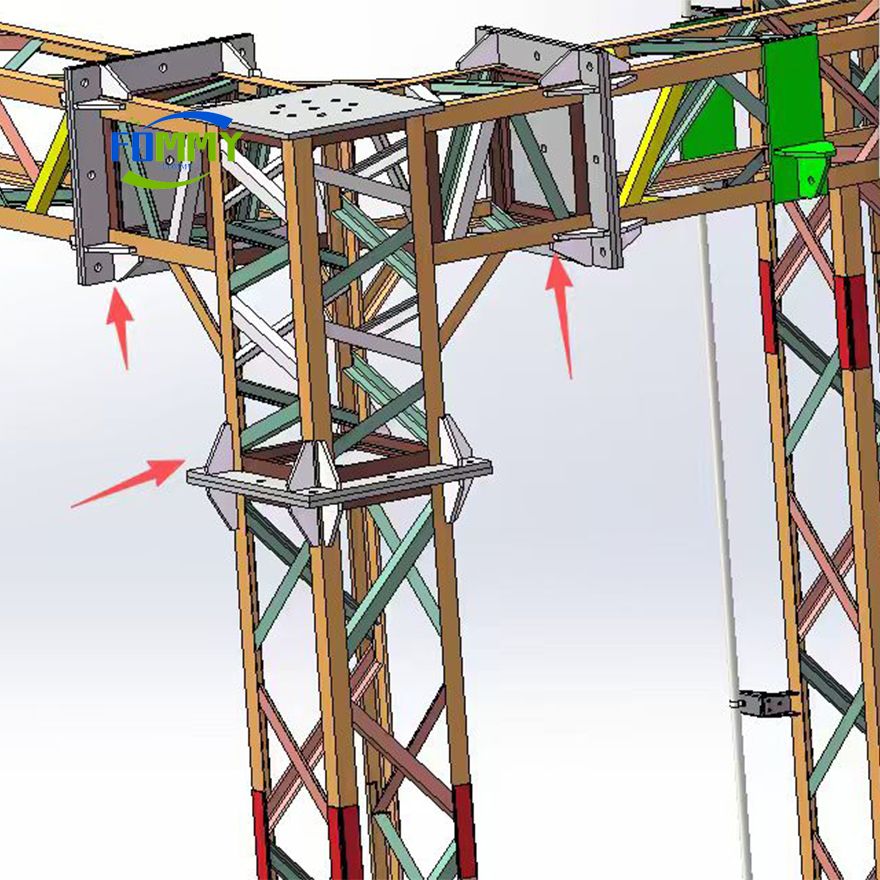

A gantry frame is a portal steel structure composed of two columns and a top crossbeam. Its core function is to provide a sturdy aerial support that can carry major equipment, tools or form specific passages.

Core structural features

Portal frame: The core shape resembles the Chinese character "门" (door), with a simple structure and clear force distribution.

High load-bearing capacity： Specifically designed to support suspended loads (such as cranes， cameras， signal lights， and display screens).

Spanning capability： The beam structure enables it to span over roads， production lines， or work areas below without interfering with ground activities.

Structural stability： Usually fixed with large foundations or counterweights to ensure overall stability.

Main Materials

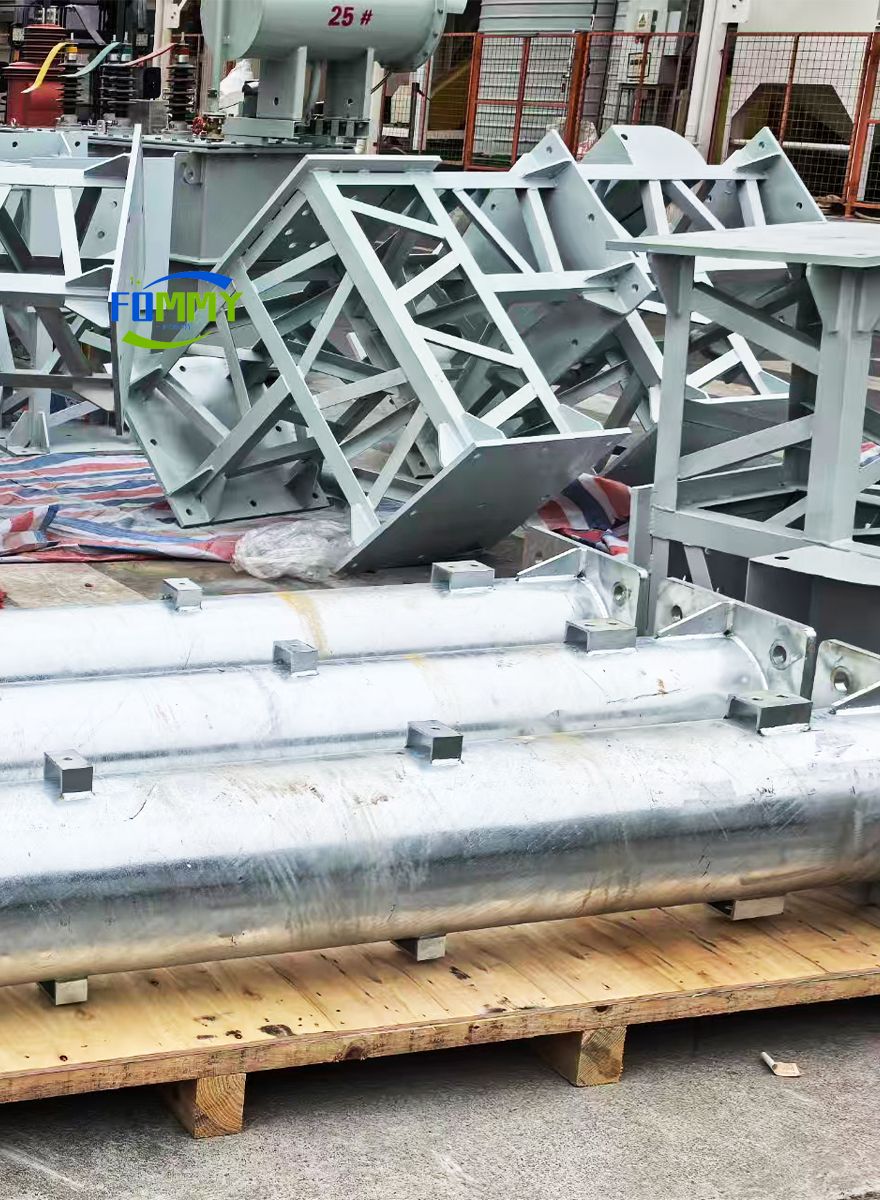

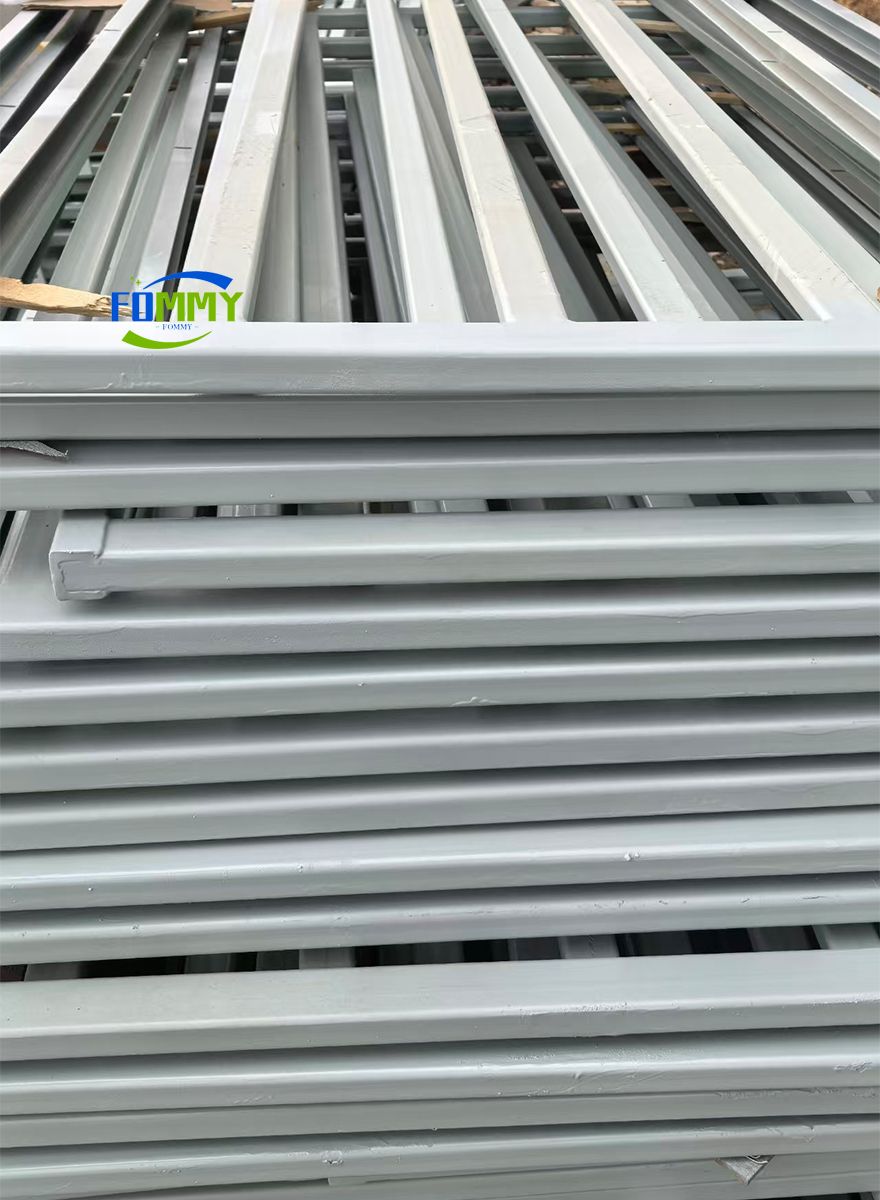

Main structure: High-strength angle steel, H-beams, steel pipes or steel plates.

Anti-corrosion treatment: Hot-dip galvanizing is the most common and effective treatment method, ensuring long-term durability in outdoor environments. Other treatment methods such as spraying can also be adopted.

• Intelligent transportation system - installation of traffic signals, surveillance cameras, and electronic display screens

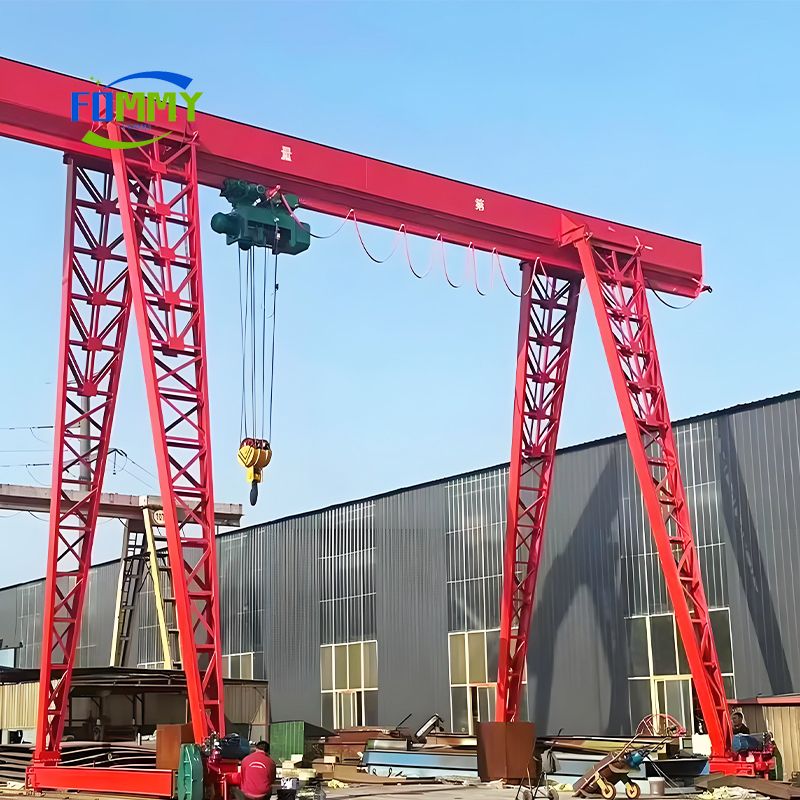

• Industrial lifting equipment - factory, warehouse and port cargo handling

• Logistics conveying system - conveyor, sorting equipment support framework

• Special vehicle inspection - Height limit frame and over-limit detection system
