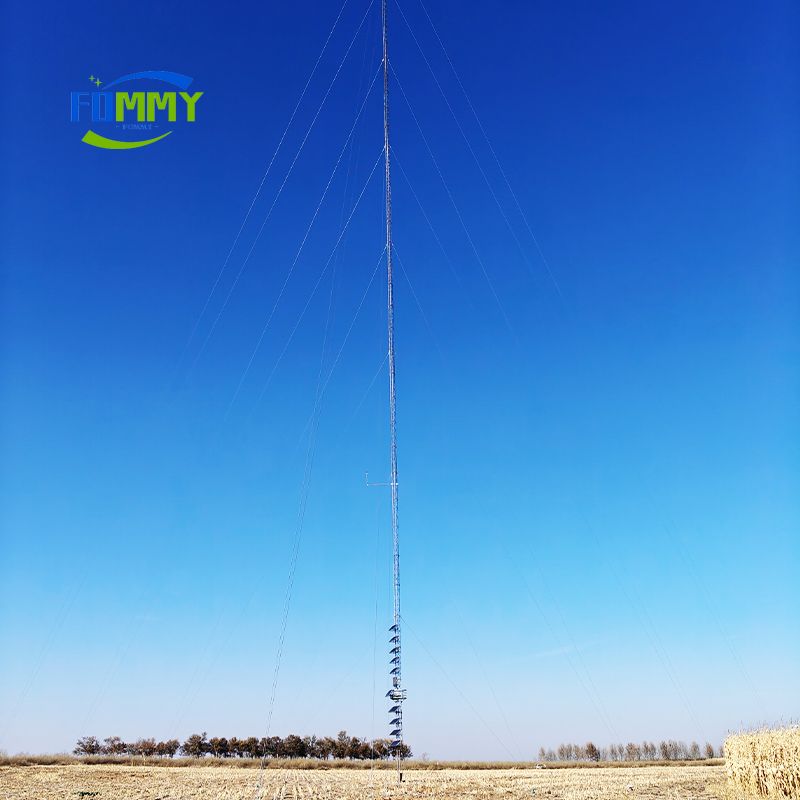

The common structural forms of wind measurement towers include self-supporting type and guy wire type.
The lower part of the self-supporting wind measurement tower is relatively wide, and the amount of tower frame material used is relatively large, with higher requirements for the foundation. The force distribution of the wire-pulling wind measurement tower is relatively reasonable, with high reliability. The cross-section of the tower body is small, and the amount of tower frame material used is small. However, the number of wire-pulling foundations is large, and the construction process is complex.
Product Description

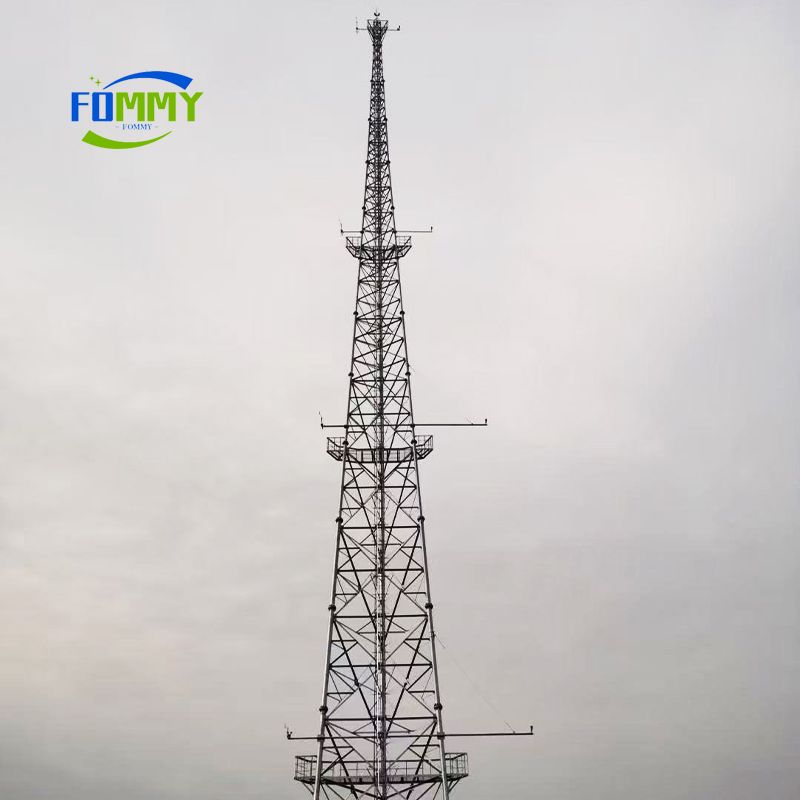

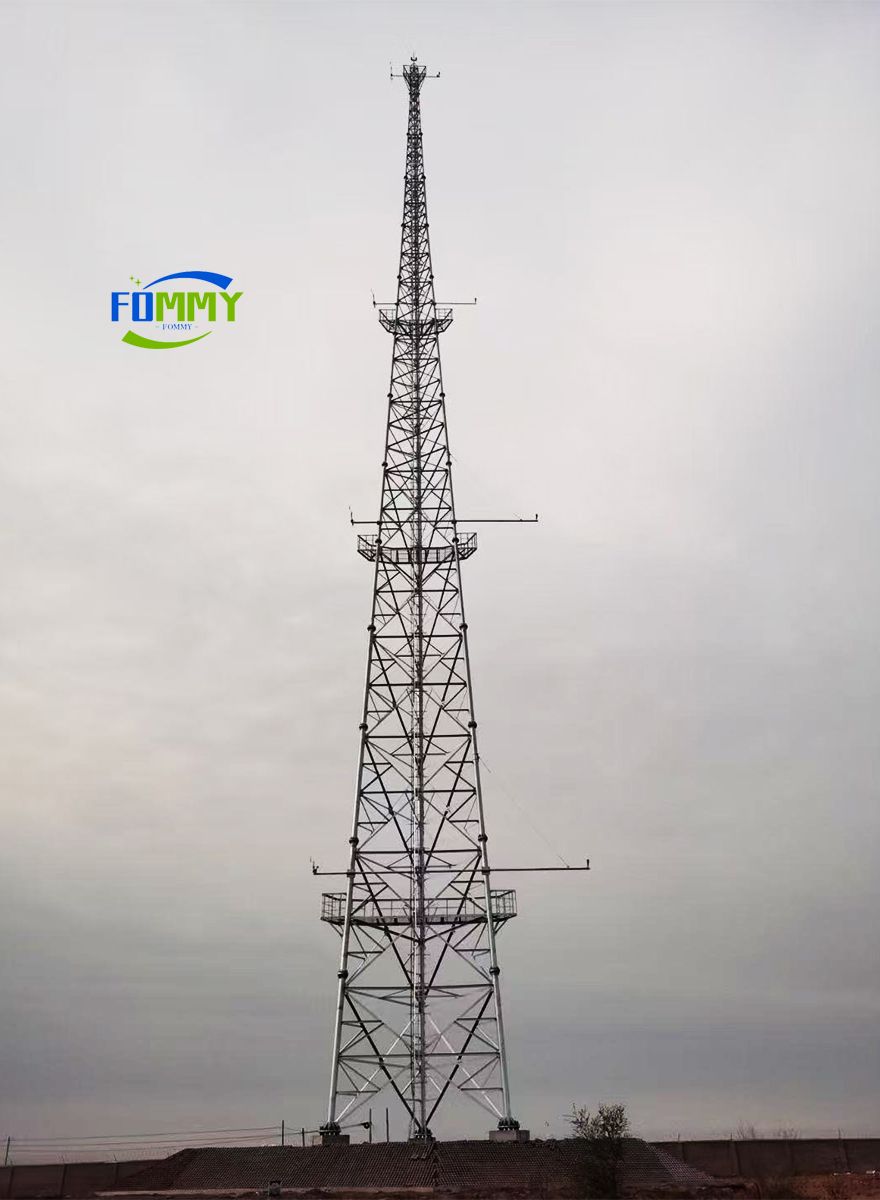

FOMMY Self-Supporting Wind Measurement Tower
----- Achieve precise wind resource assessment without the clutter and land use of guy wires.
Engineered for stability and accuracy in the most demanding environments.
Key Advantages
Why Choose a Guy-Wire-Free Design?
Clean Site, Maximum Usability
Eliminates tripping hazards and allows for unobstructed use of the land beneath the tower—ideal for active farms, construction sites, and areas with limited space.
Inherent Structural Integrity
The robust triangular or square lattice design provides exceptional torsional and bending strength, ensuring stability and minimizing tower vibration for superior data accuracy.
Simplified Installation & Logistics
With no anchor points to survey and install, the setup process is faster, requires less coordination, and reduces overall civil works costs.
Durable, Low-Maintenance Investment
Built from high-strength steel with full hot-dip galvanization, our masts are protected against corrosion for decades, ensuring reliable performance with minimal upkeep.
Technical Specifications
| Parameter | Specification |
| Structure Type | Self-Supporting Lattice (Triangular/Square) |
| Standard Height Range | 40m, 60m, 80m, 100m, 120m,150m (Customizable) |
| Design Wind Speed | Up to 55 m/s (Customizable to local codes) |
| Ice Load | Up to 50 mm (Site-specific design available) |
| Material | High-Strength Steel (Q235B, Q345B) |
| Corrosion Protection | Hot-Dip Galvanized (≥85μm) |

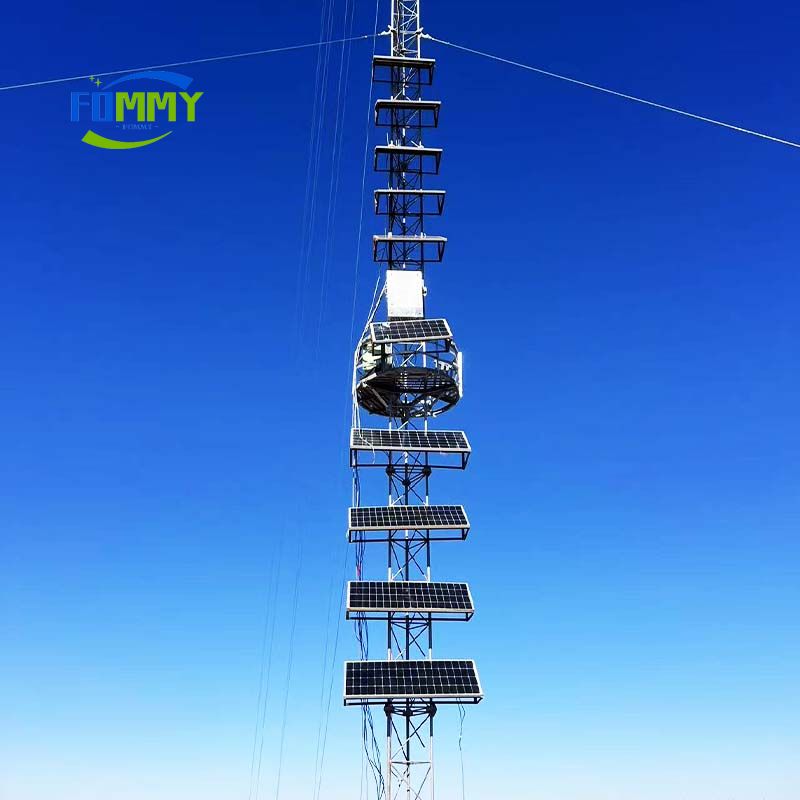

| Sensor Mounting Booms | Multiple levels, customizable lengths & orientations |
| Verticality | ≤ 1/1000 |
| Foundation | Reinforced concrete pile cap |
Applications
Wind Farm Site Assessment: "Gather bankable data for project financing and energy yield prediction without the land-use complications of guy wires."
Complex Terrain Micrositing: "The stable base is ideal for rugged or forested terrain where anchor points are challenging to install."
Urban & Industrial Wind Studies: "Perfect for sites where land must remain usable, such as ports, industrial plants, or near airports."
Long-Term Environmental Research: "Provides a set-and-forget solution for multi-year atmospheric monitoring campaigns."

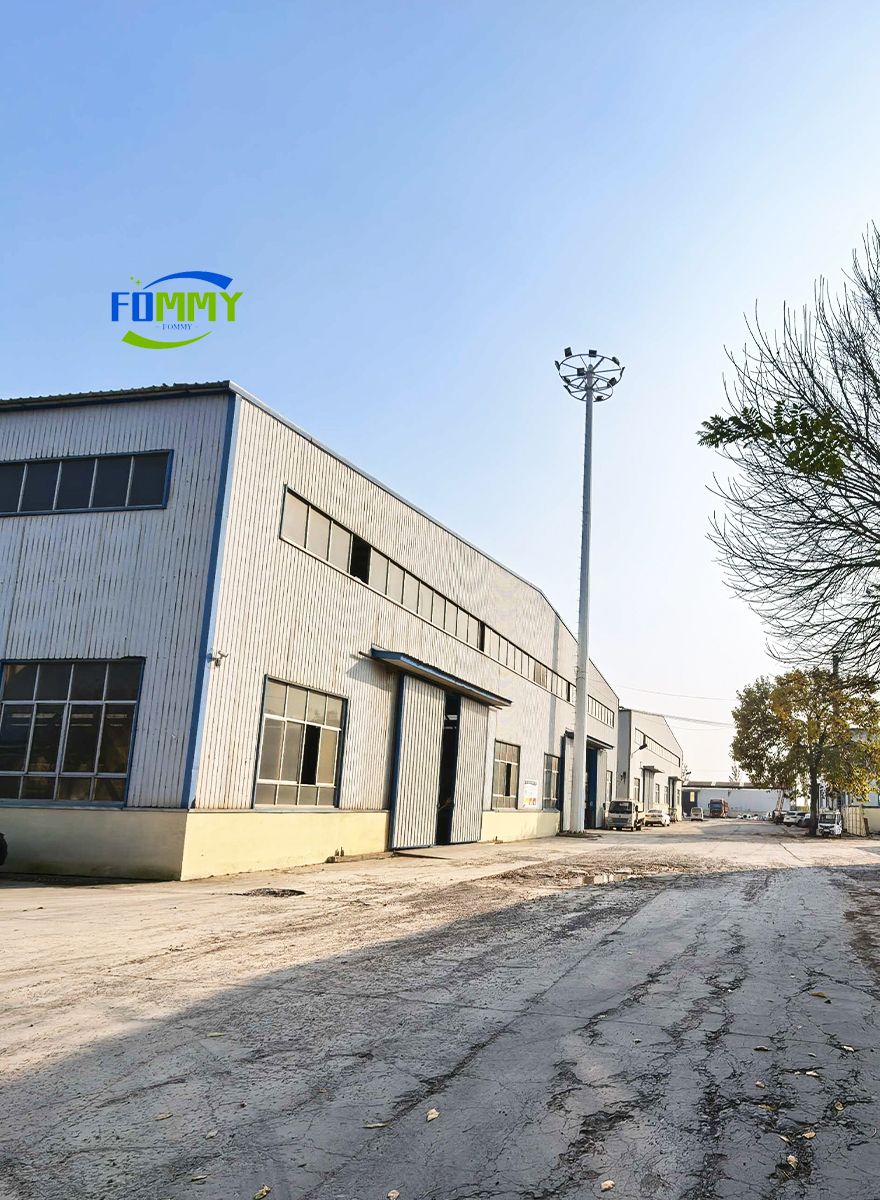

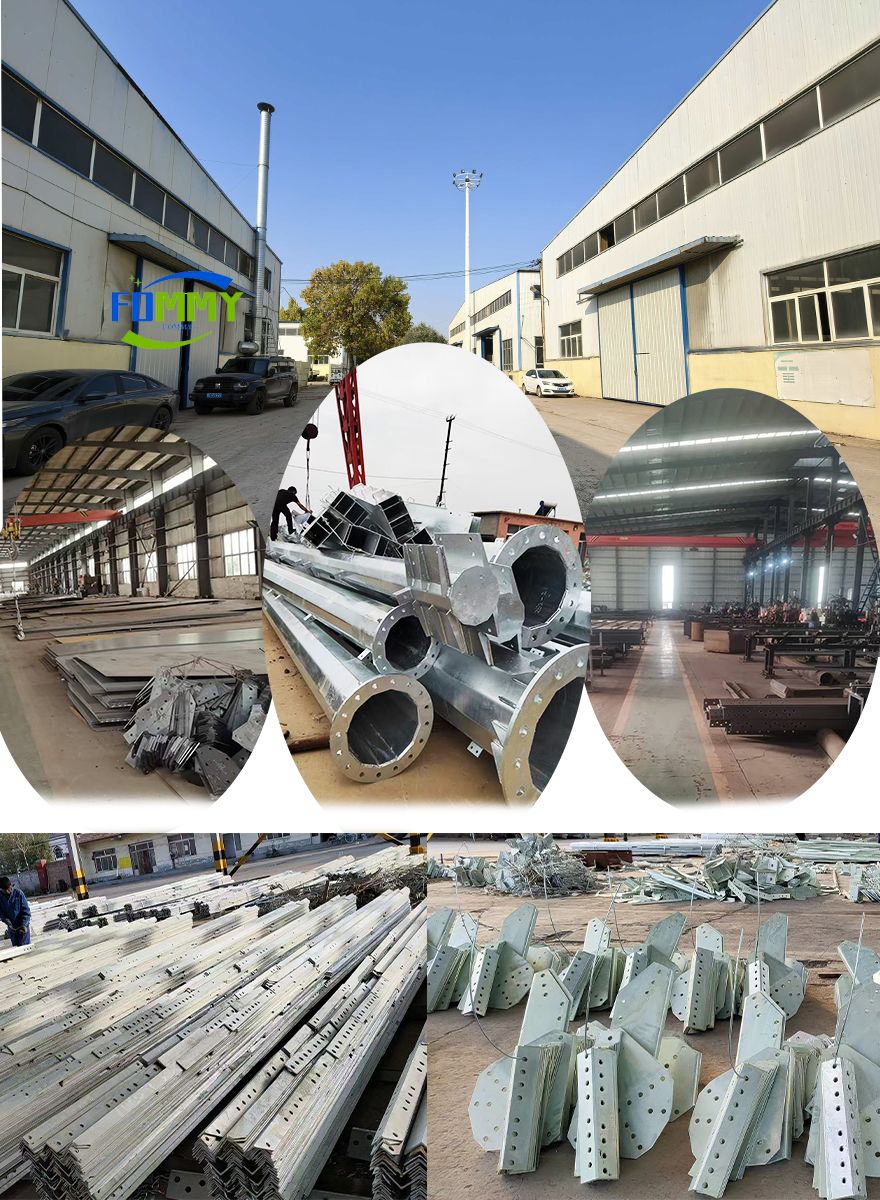

Our Factory
