Wind Measurement Tower:

‌

In recent years, with the global attention to wind energy resources and the rapid development of the wind power generation industry, various enterprises or wind power developers have begun to invest in building wind measurement towers to obtain first-hand wind energy data for the future investment and construction of wind farms.

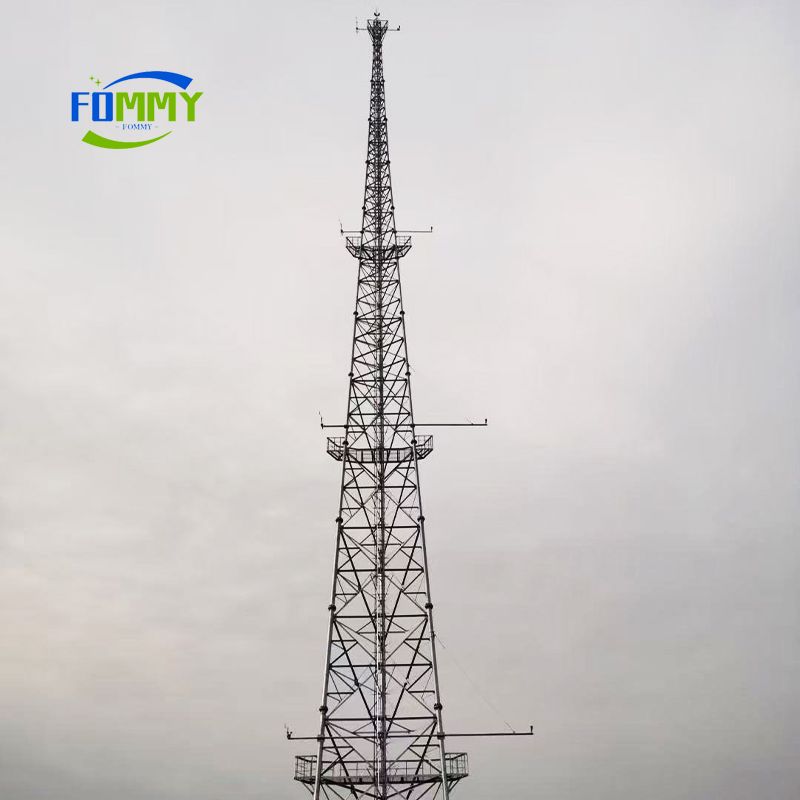

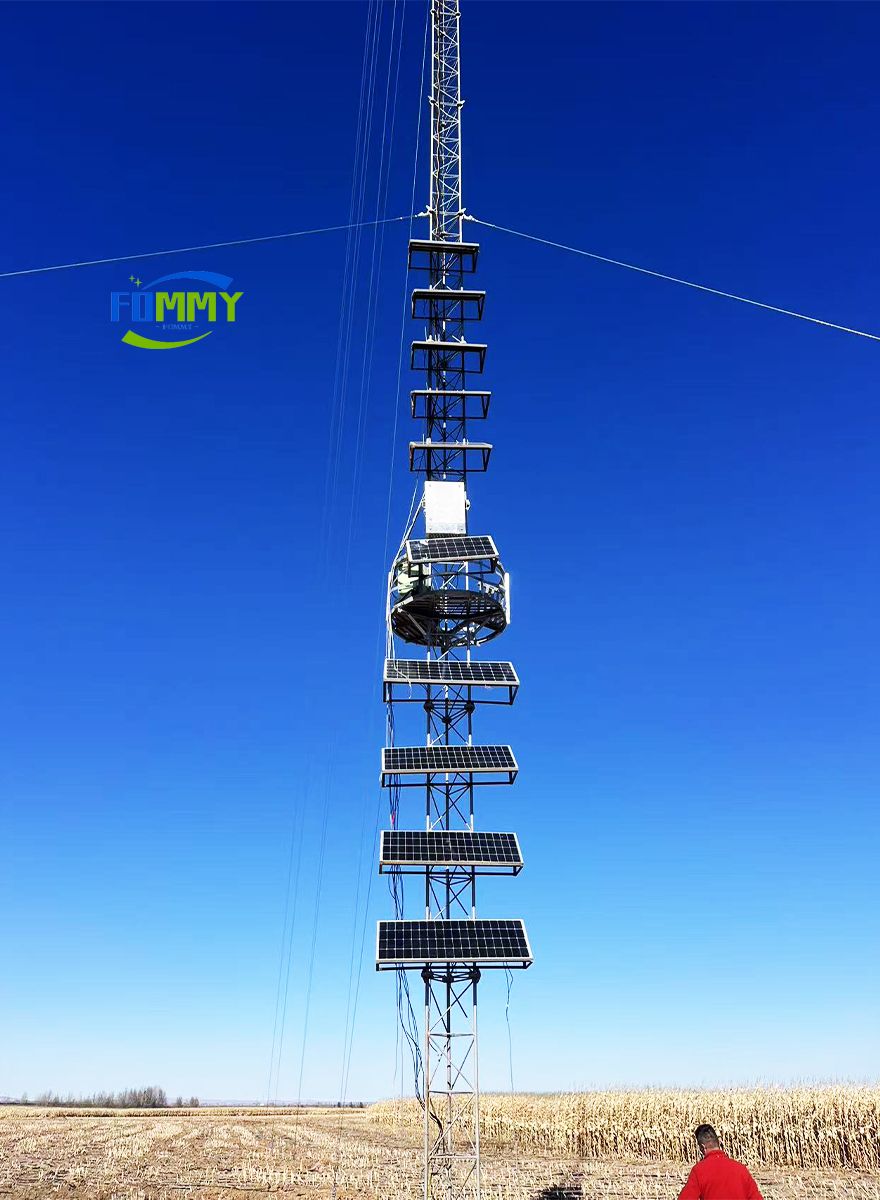

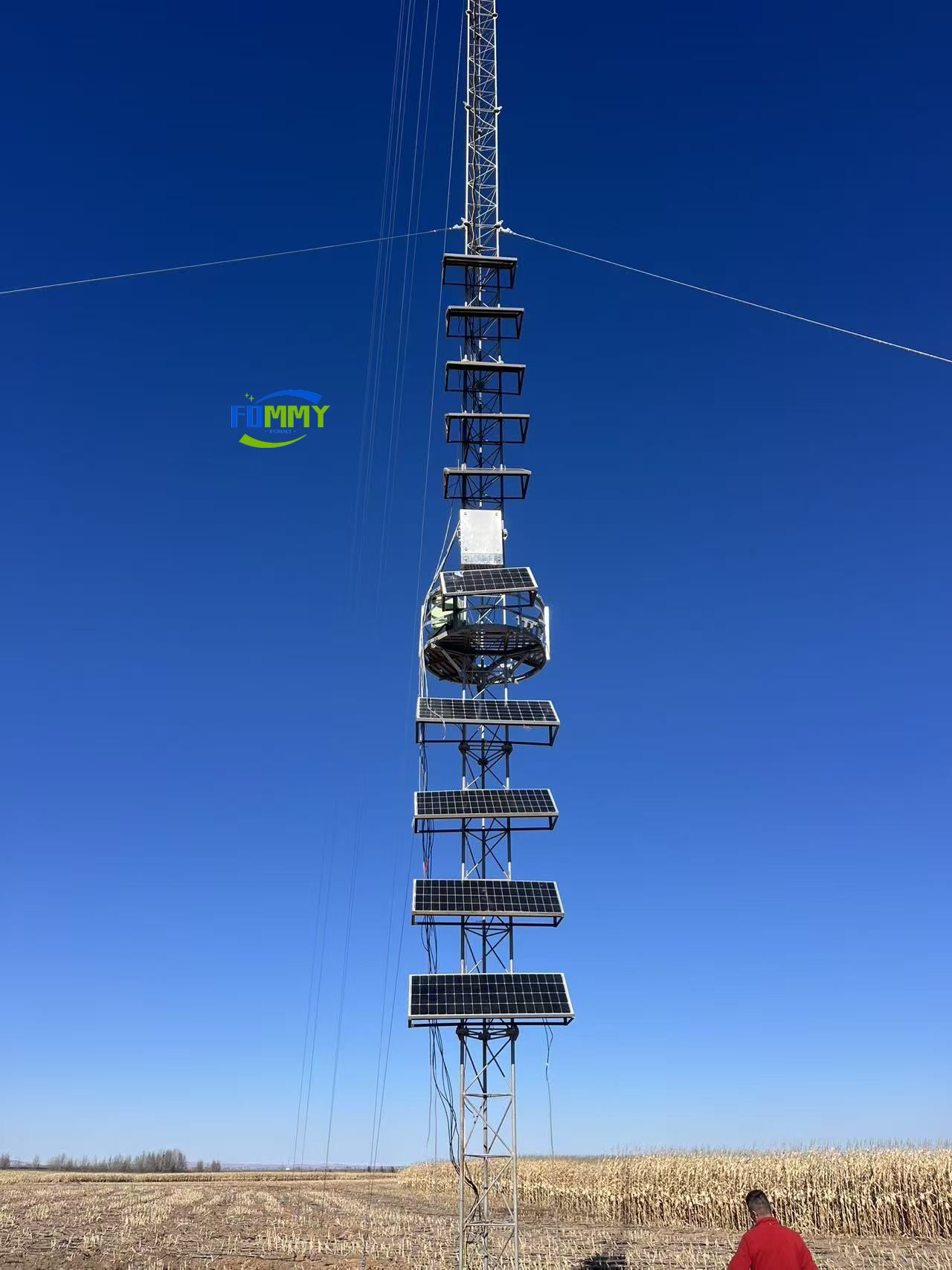

The wind measurement towers are set up within the site of the wind farm. They are mostly of truss structure and cylindrical structure, and are reinforced by diagonal tension of steel strands. Their height is generally 10 to 150 meters. Anemometers, wind vanes and monitoring devices for temperature, air pressure, etc. are installed at different heights of the tower body. The wind conditions at the site can be observed continuously around the clock. The measurement data is recorded and stored in the data logger installed on the tower body.

The main functions of the wind measurement tower are: environmental monitoring and data collection of resources such as wind, air pressure and humidity. Provide support for the installation of corresponding instruments and equipment.

Applicable units: Departments such as the preliminary planning of power plants, wind measurement on islands, meteorological data collection, and environmental monitoring.

Uncompromised Data Accuracy

The tower structure is professionally engineered with advanced simulation analysis to minimize tower shadow effects and vibration interference, ensuring precise measurement from wind speed sensors and other instruments.

Exceptional Durability & Longevity

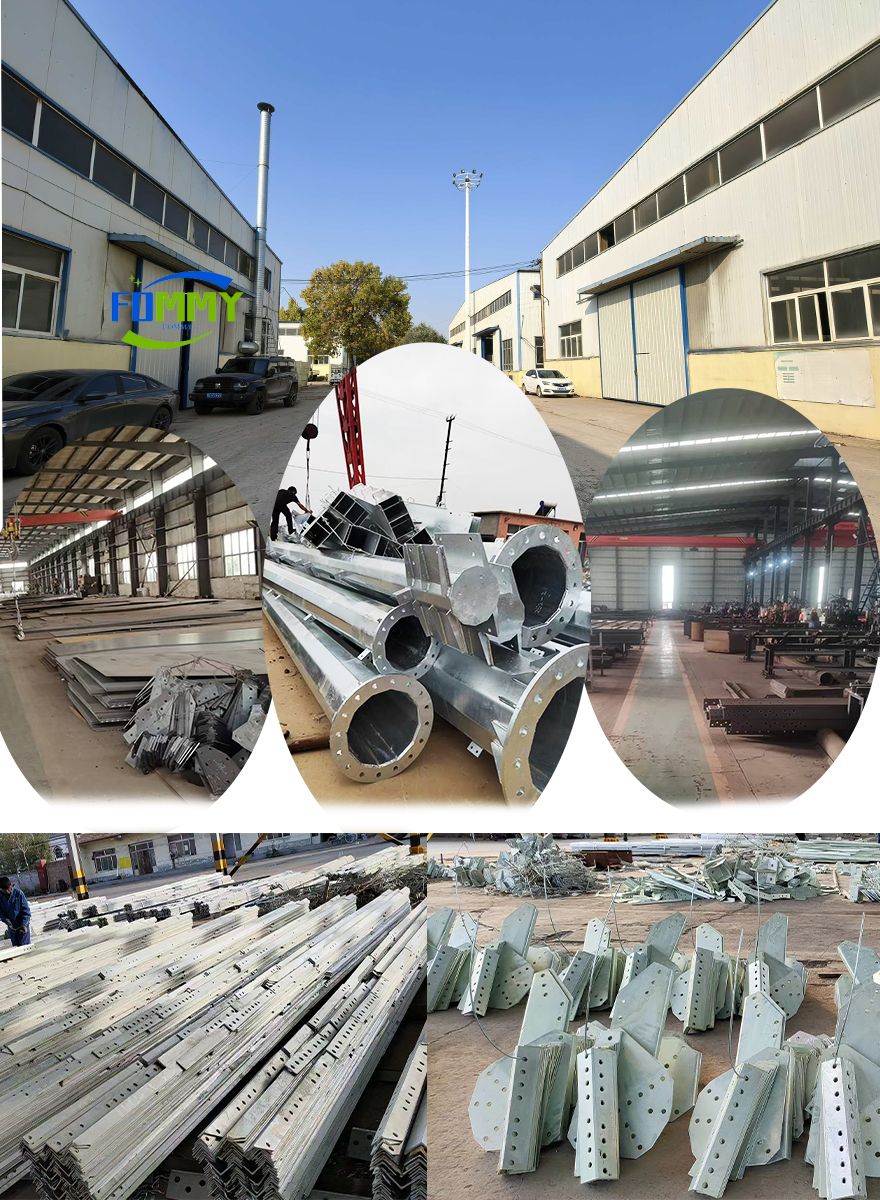

The main structure uses high-strength steel with hot-dip galvanized surface treatment, providing over 30 years of corrosion resistance and reliable performance in coastal, inland, and extreme weather conditions.

Full Customization Flexibility

Available in triangular or square lattice configurations with customizable heights from 60m to 150m, fully compliant with IEC 61400-12-1 standards and project-specific requirements.

Easy Installation & Maintenance

Modular design with standardized components, specialized installation tools, and complete safety climbing systems significantly reduce installation complexity and maintenance costs.

Structure Type:    Triangular/Square Lattice

Standard Height:    60m, 80m, 100m, 120m, 150m (Customizable)

• Design Wind Speed:    Up to 55 m/s (Customizable to local conditions)

• Ice Load:    Up to 50 mm (Site-specific design available)

• Main Material:    High-Strength Structural Steel (Q235B/Q345B)

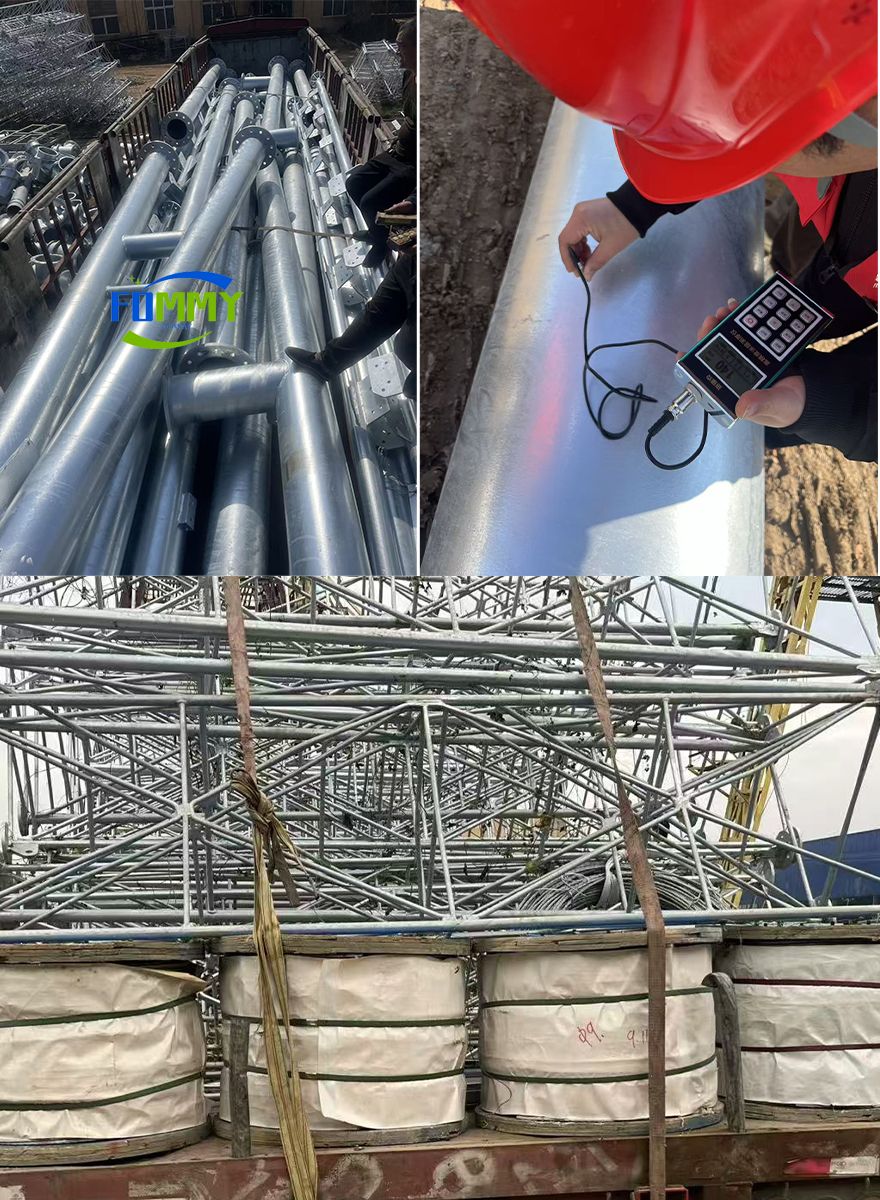

• Corrosion Protection:    Hot-Dip Galvanized (≥85μm)

• Sensor Booms:    Multiple levels, adjustable length & orientation

• Design Standards：  Compliant with IEC 61400-12-1
